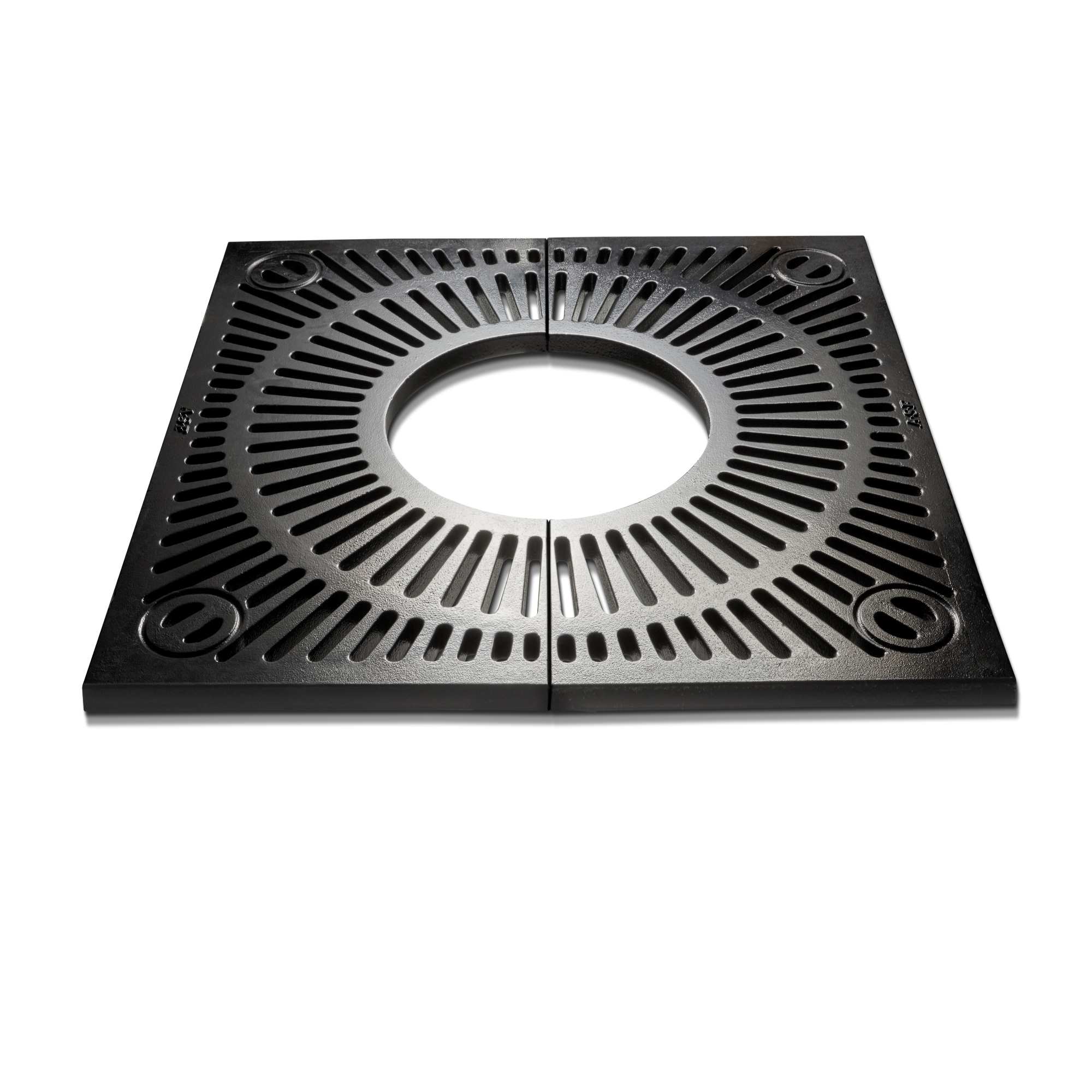

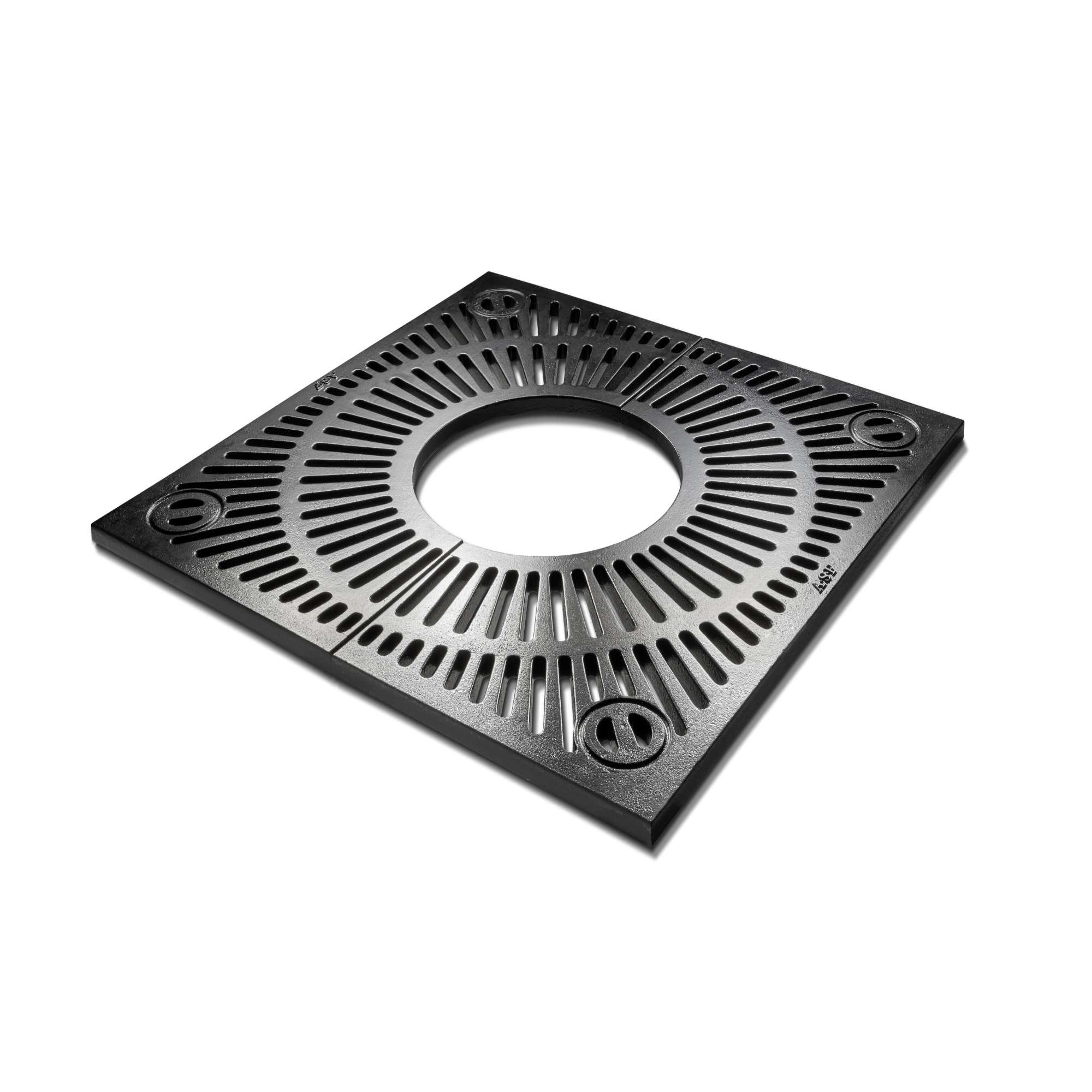

Raydale Tree Grille
The Raydale Cast Iron Tree Grilles are designed for tree planting and tree protection when urban landscaping projects are being undertaken. The gt Dales Collection Tree Grille protectors offer protection for young trees from vehicles and pedestrians in urban settings. gt Dales Collection Tree Grilles are manufactured entirely in the UK from 100% recycled materials, and are themselves 100% recyclable. Made from engineering grade 250 cast iron, they are expected to last up to 100 years in normal use - even with minimal or no maintenance and painting. This is because 250 grade cast iron is not only incredibly durable, it also does not rust in the traditional sense - in fact over a 100 year timescale, even if left unpainted, Green-tech tree grilles will lose only a few microns to oxidisation. Green-tech offer a standard range of tree grilles as well as bespoke and one off products. gt Tree Grilles can be supplied with both irrigation and/or uplighter holes. We recommend that all grilles are fitted using a support frame and security clamps.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
The Raydale Cast Iron Tree Grilles are designed for tree planting and tree protection when urban landscaping projects are being undertaken. The gt Dales Collection Tree Grille protectors offer protection for young trees from vehicles and pedestrians in urban settings. gt Dales Collection Tree Grilles are manufactured entirely in the UK from 100% recycled materials, and are themselves 100% recyclable. Made from engineering grade 250 cast iron, they are expected to last up to 100 years in normal use - even with minimal or no maintenance and painting. This is because 250 grade cast iron is not only incredibly durable, it also does not rust in the traditional sense - in fact over a 100 year timescale, even if left unpainted, Green-tech tree grilles will lose only a few microns to oxidisation. Green-tech offer a standard range of tree grilles as well as bespoke and one off products. gt Tree Grilles can be supplied with both irrigation and/or uplighter holes. We recommend that all grilles are fitted using a support frame and security clamps.
Ribblesdale Size and Support Frame Guide
Size |
Aperture Size |
Pieces |
Support Frame |
1200 x 1200mm |
255mm O Radius |
2 |
Type 1 |
1500 x 1500mm |
350mm O Radius |
4 |
Type 2 |
1800 x 1800mm |
400mm O Radius |
4 |
Type 2 |
Product Specification
Material: Grade 250 cast iron.
Standard Finish: One coat metal primer. One coat weathershield rust resistant paint system applied in most RAL or BS colours.
Irrigation Holes: We can supply tree grilles with irrigation holes and covers in order to give access to the irrigation of the tree root system.
Supporting Frames: Tree grilles can be supplied with a range of supporting frames depending on the application: Light, medium or heavy duty paving support.
Security Clips: Security clips are available to prevent unauthorised removal of the tree grille segments and to further increase the systems rigidity.
Tree Grilles are made to order and Price on Application
