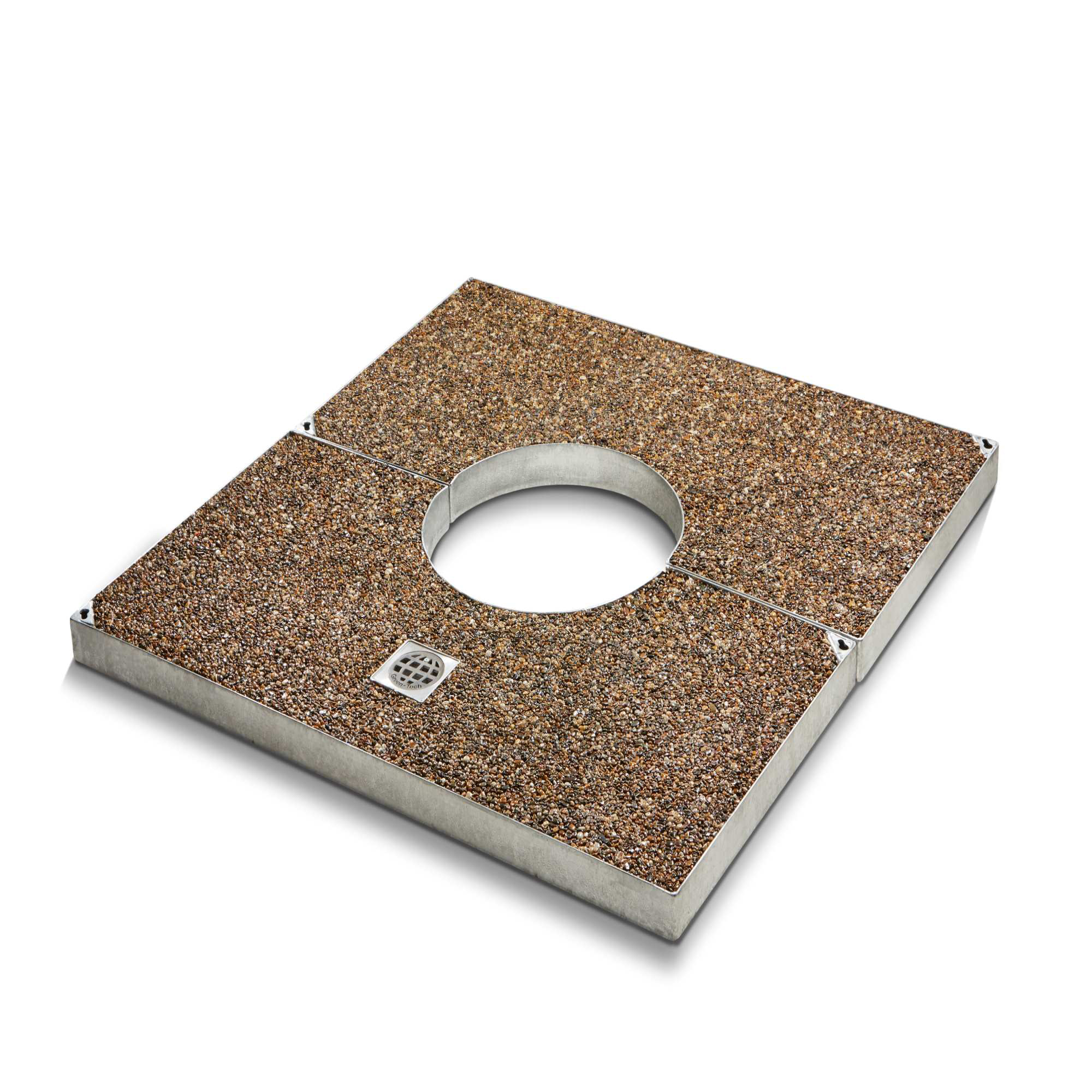

Resi-Grille Tree Grille System

The GT Resi-Grille System is a cutting-edge solution developed in direct response to contractor demand across the UK for a tree grille that combines strength, visual appeal, and sustainable surface design. Engineered to integrate seamlessly with GT Resibond, the system features a recessed 50mm depth, allowing the grille to be filled with porous GT Resibond material. This not only supports the load of street and pedestrian traffic but also protects the tree’s root ball and promotes healthy tree growth in urban settings.

Designed specifically for high-footfall public realm projects, streetscapes, civic schemes, and regeneration initiatives, the GT Resi-Grille delivers a durable and contemporary finish. Once infilled, it creates a solid yet porous surface that minimises soil compaction, reduces trip hazards, and eliminates the accumulation of litter, cigarette ends, and debris commonly seen with traditional tree grille systems.

Manufactured from hot dip galvanised mild steel, the Resi-Grille is built to BS EN ISO 1461:1999 standards, offering long-term resistance to corrosion, wear, and harsh weather conditions. It’s an ideal choice for landscape architects, urban designers, councils, and engineers seeking to enhance urban greening schemes while meeting accessibility and durability requirements.

Irrigation Compatible: Designed to support below-ground irrigation. Compatible with the Mona Relief Piazza Tree Irrigation systems (sold separately). Contact us for advice on system selection and installation.

Key Features & Benefits

• Structural-Grade Strength
  Supports pedestrian and light vehicular loadings while protecting the tree’s critical root zone.

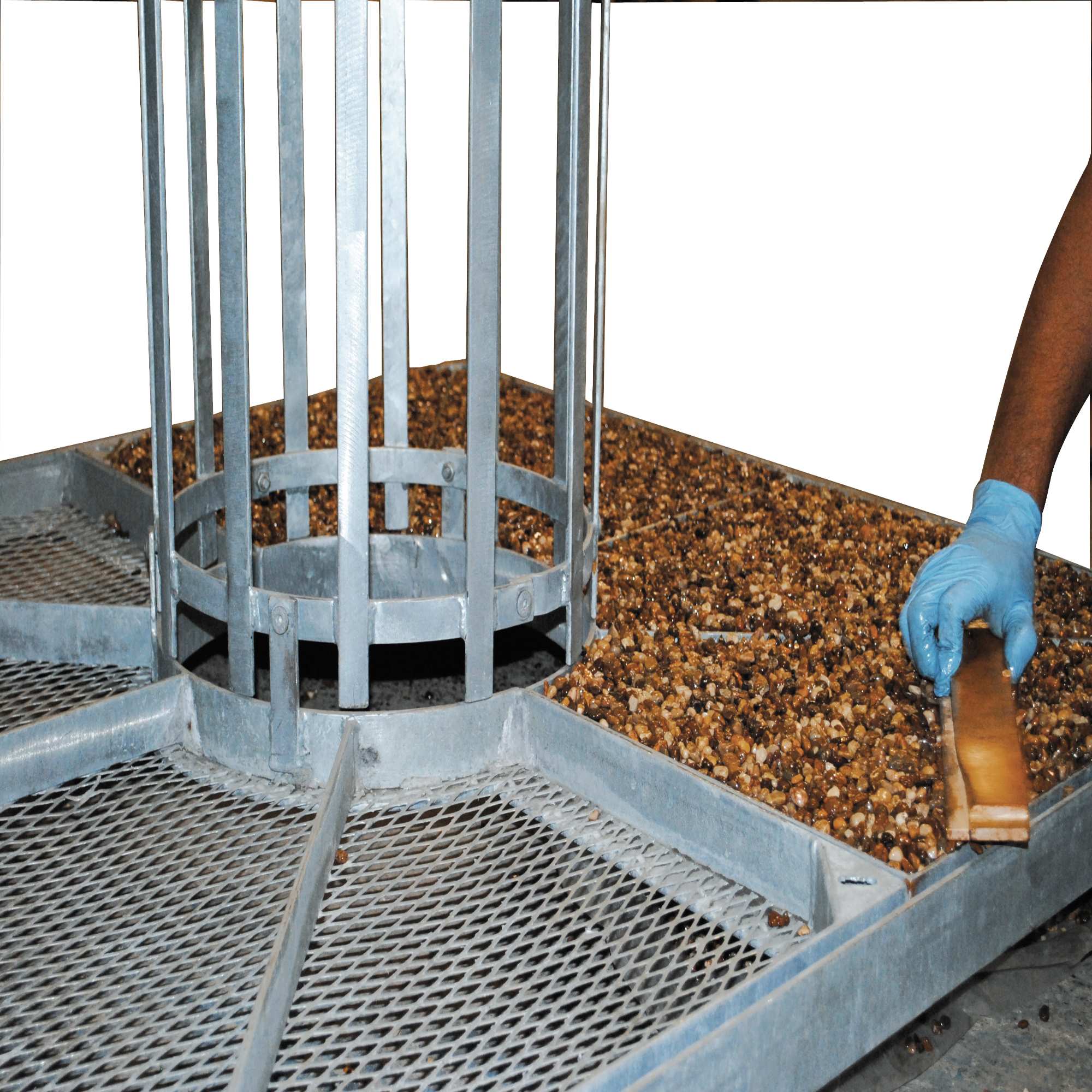

• 50mm Recess for GT Resibond
  Allows infill with GT Resibond for a porous, load-bearing surface that supports urban tree health.
• Clean, Low-Maintenance Finish
  Eliminates gaps and crevices that trap debris, making the grille safer and easier to clean.
• Urban Aesthetic Appeal
  Offers a sleek, contemporary design that integrates beautifully into modern or heritage hardscapes.
• DDA-Compliant Surface
  Ensures a safe, trip-resistant finish for all public spaces – ideal for schools, plazas, and town centres.
• Customisable Sizes
  Choose from a range of standard sizes or request bespoke dimensions to suit your specific project needs.
• Irrigation-Compatible Design
  Fully compatible with Mona Relief Vente and Piazza Tree Irrigation Systems (sold separately).

Applications

• Urban tree planting schemes
• Streetscapes and highway schemes
• Public realm and regeneration projects
• Civic squares, parks, and plazas
• Commercial developments and transport hubs
• Schools, universities, and campus grounds

Available Sizes

Grille Sizes (Standard):

• 1m x 1m
• 1.2m x 1.2m
• 1.5m x 1.5m
• 1.8m x 1.8m
• 2.2m x 2.2m
  Custom sizes available upon request.

Material & Finish:

• Mild steel
• Hot dip galvanised to BS EN ISO 1461:1999 for long-term corrosion protection
