Rain Bird HV Solenoid Valves

Product Code: 100IR1313-PRO

The Rain Bird HV Solenoid Valves are your budget landscape and garden solenoid valve without compromising on quality. The HV Solenoid Valve is available only in 1" BSP, either male or female threaded, and is perfect for residential watering systems.

Notice

This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.

The Rain Bird HV Solenoid Valves are your budget landscape and garden solenoid valve without compromising on quality. The HV Solenoid Valve is available only in 1" BSP, either male or female threaded, and is perfect for residential watering systems. It is very cost effective while maintaining the Rain Bird quality. It has a glass filled polypropylene body, providing great strength at an affordable price. Available with Flow-Control (F) if you want that extra bit of control (we recommend this option). For operating pressures between 1 and 10.3 bar, it even has a tiny 200-micron filter built into it to protect its diaphragm from getting blocked. It's also very compact.

Rain Bird HV Solenoid Valves Types

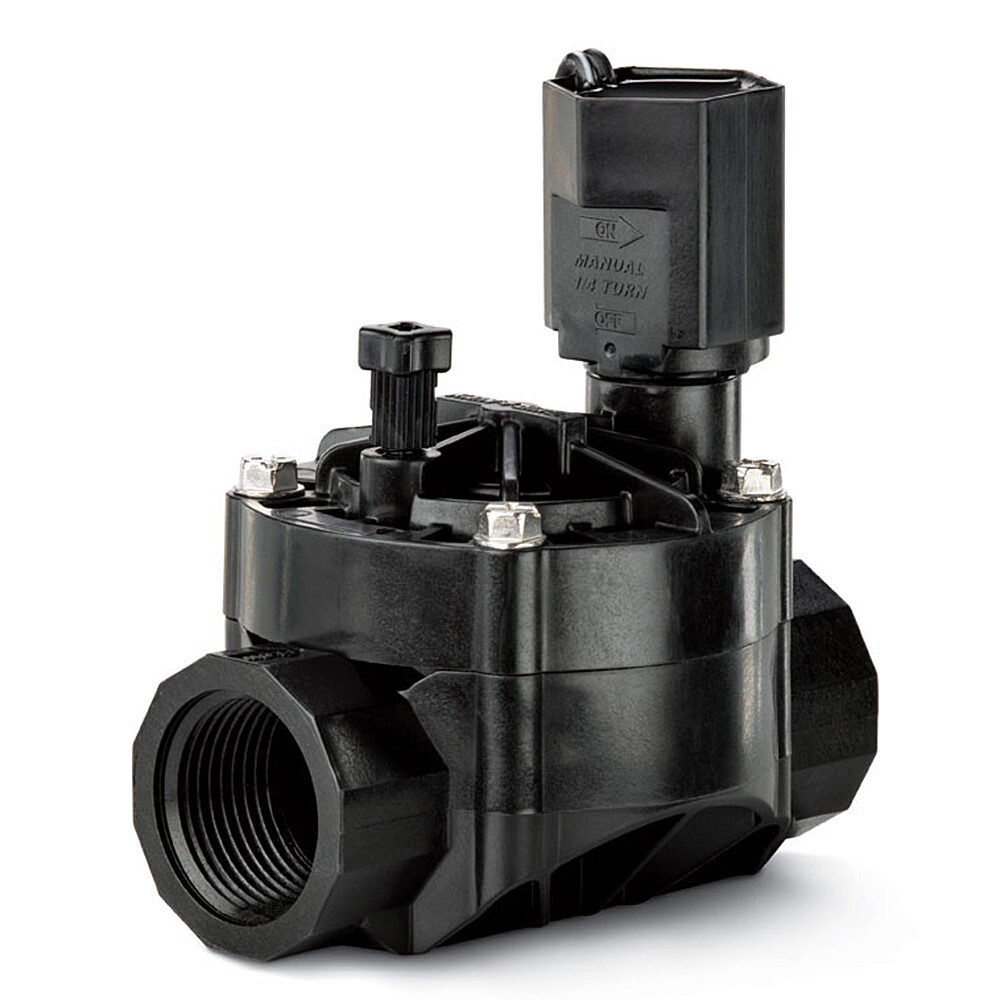

  • 100HV: 1" BSP female threaded Rainbird HV Solenoid valve (H01000), complete with standard 24vac coil. Can be used on standard wall-mounted irrigation controllers.

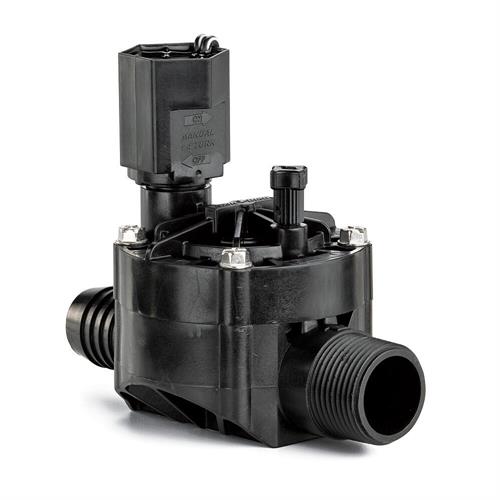

  • 100HVMM: 1" BSP male threaded Rainbird HV Solenoid valve (H05000), complete with standard 24vac coil. Can be used on standard wall-mounted irrigation controllers.

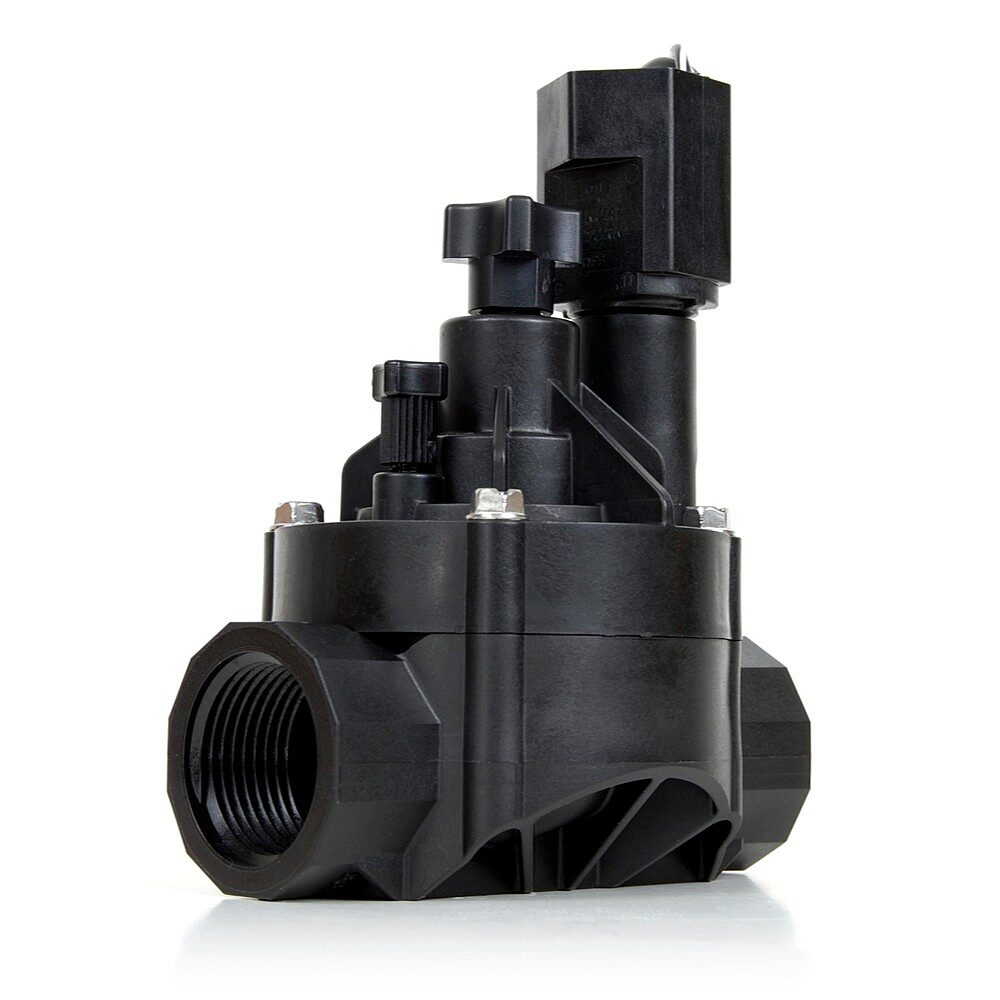

  • 100HVF: 1" BSP Female threaded Rainbird HV Solenoid valve with Flow Control (H01010), complete with standard 24vac coil. Can be used on standard wall-mounted irrigation controllers.
  • 100-HVBSP9V: 1" HV BSP female threaded Rainbird Solenoid valve (H01040), complete with 9 volt DC latching solenoid coil. Use this valve only on 9-volt battery-operated timers.
  • 100-HV9VMM-BSP: 1" BSP male threaded Rainbird HV Solenoid valve (H05040), complete with 9 volt DC latching coil. Use this valve only on 9-volt battery-operated timers.

Rain Bird HV Solenoid Valves Features

  • Patented, eccentric, balanced pressure, Buna-N diaphragm with self-cleaning 90-mesh (200 microns) pilot water filter and captured stainless steel spring – Eccentric design provides smoother closing, less water hammer

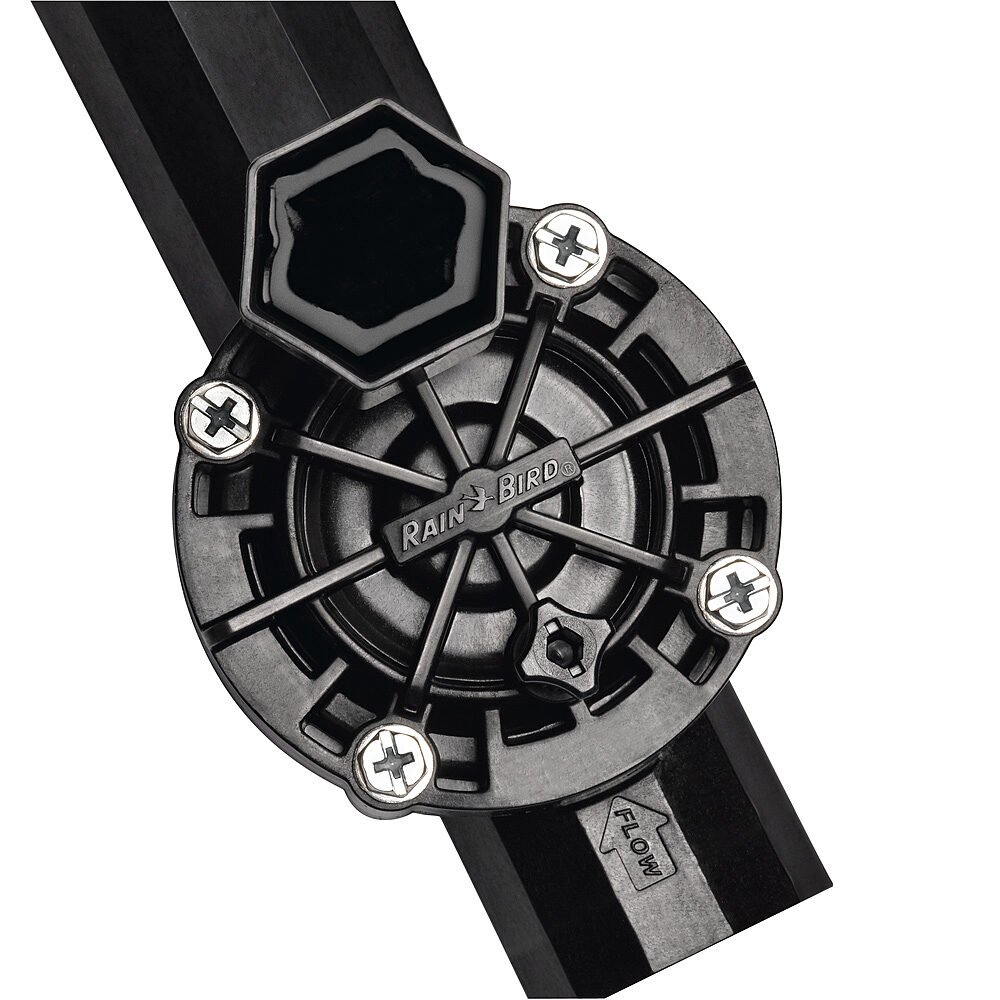

  • Only four durable, captured multi-drive bonnet screws that come out with half the number of turns for fast and easy servicing – at least twice as fast as the competition
  • Glass-filled polypropylene body for strength (slip by slip model bodies are PVC)
  • All popular model configurations available
  • Compact design, 2.54" spin radius for tight installations
  • Reverse flow, normally closed design
  • External bleed to manually flush the system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream

Rain Bird HV Solenoid Valves Specification

  • Pressure: 15 to 150 PSI (1,0 to 10,3 bar)
  • Flow: 0.2 to 30 GPM (0,05 to 6,82 m3/h; 0,01 to 1,89 l/s); for flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream
  • Operating Temperatures: Water temperature up to 110° F (43° C); ambient temperature up to 125° F (52° C)
  • Inrush current: 0.290A at 50/60 Hz
  • Holding current: 0.091A at 50/60 Hz
  • Solenoid Coil resistance: 70-85 Ohms (40° F - 110° F)
  • 24 VAC 50/60 Hz (cycles/sec.) solenoid

Rain Bird HV Solenoid Valve Dimensions

  • Height: 4.62" (11.7 cm)
  • Height: (F): 5.62" (14.3 cm)
  • Height: (MB): 4.50" (11.4 cm)
  • Length: 4.4" (11.2 cm)
  • Length: (MB): 5.68" (14.4 cm)
  • Width: 3.1" (7.9 cm)
