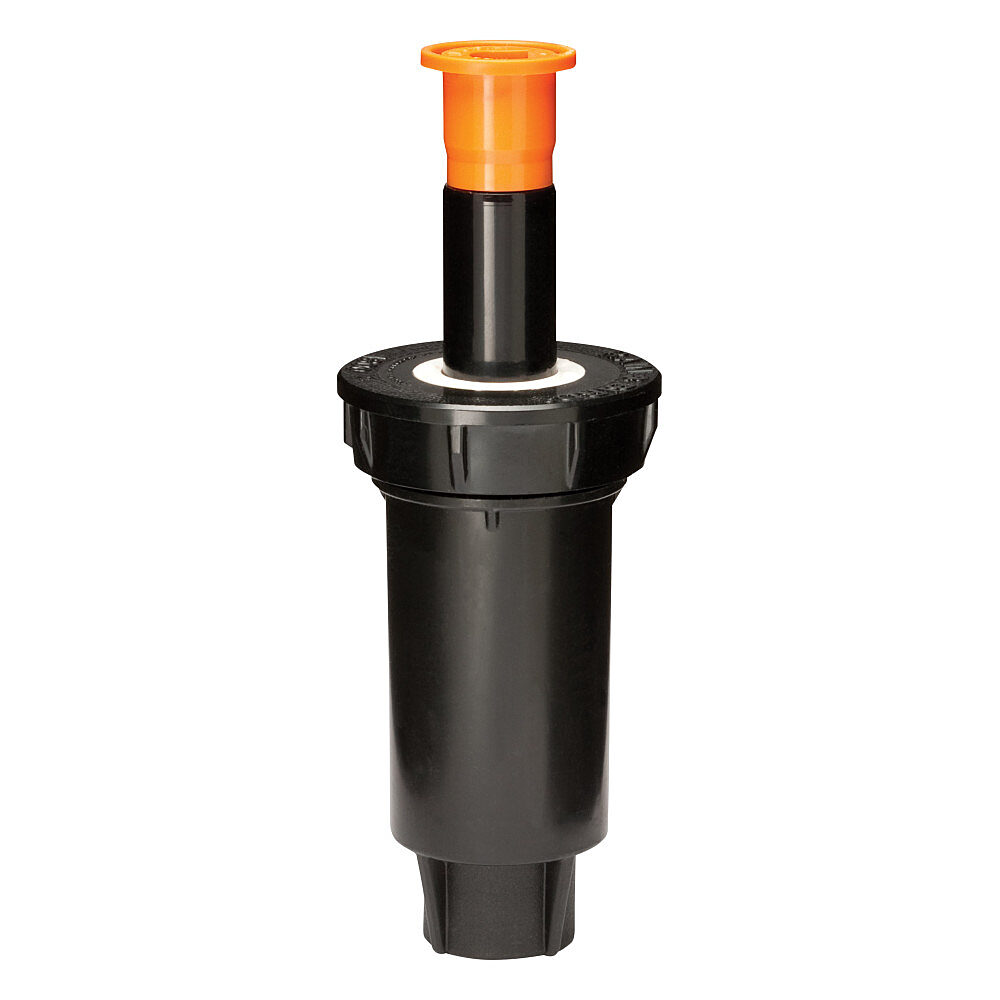

Rain Bird 1800 Series Pop-up Body

Product Code: 100IR1231-PRO

The Rain Bird 1800 Series Pop-up Body is installed in parks and backyards across the globe, Rain Bird's 1800 Series is the #1 commercial-grade irrigation spray head brand in the world.

Chosen for its reliability, heavy-duty materials, and versatility, the 1800 Series offers a broad selection of pop up heights and nozzle combinations for watering shrubs, small lawns, and irregularly shaped planting areas.

Notice

This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.

The Rain Bird 1800 Series Pop-up Body is installed in parks and backyards across the globe, Rain Bird's 1800 Series is the #1 commercial-grade irrigation spray head brand in the world.

Chosen for its reliability, heavy-duty materials, and versatility, the 1800 Series offers a broad selection of pop up heights and nozzle combinations for watering shrubs, small lawns, and irregularly shaped planting areas.

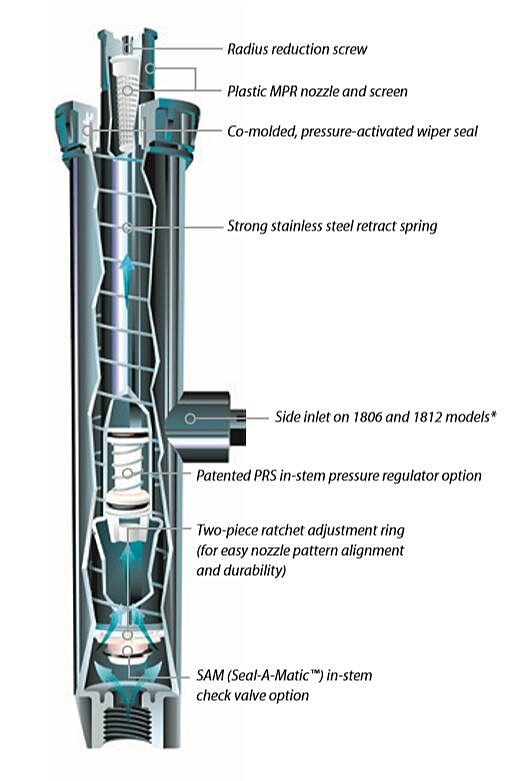

All models feature Rain Bird's patented pop-up mechanism with heavy-duty stainless steel spring for dependable out-of-sight retraction, plus an exclusive co-molded wiper seal for unmatched resistance to grit, pressure, and extreme environments.

Please note - Nozzles Not Included

All Rain Bird 1800 Series Pop-up Bodies:

  • Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment
  • Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, ensuring long product life
  • Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
  • Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
  • Five-Year Trade Warranty

Rain Bird 1800 Series Pop-up Body SAM Series:

  • Built-in Seal-A-Matic (SAM) check valve. Eliminates the need for under-the-head check valves
  • Ideal for use in areas with changing elevations
  • Traps water in lateral pipes in elevation changes of up to 14 feet (4.2 m), eliminating low head drainage at the base of slopes or hillsides
  • Reduces wear on system components by minimizing water hammer during start-up

Rain Bird 1800 Series Pop-up Body Specification

  • Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise
  • Spacing: 2.5 to 24 feet (0.8 to 7.3m)*
  • Pressure: 15 to 70 psi (1.0 to 4.8 bar)

Rain Bird 1800 Series Pop-up Body SAM Series:

  • SAM capability: holds up to 14 feet (4.2 m) of head; 6 psi (0.4 bar)
  • Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m3/h; 0.36 l/m) otherwise
  • Installation: bottom inlet
  • *2.5 to 15 feet with standard Rain Bird Spray Head Nozzles (SQ, U-Series, HE-VAN); 8 to 24 feet with Rain Bird Rotary Nozzles

Dimensions

  • ½" (15/21) NPT female threaded inlet
  • Exposed surface diameter: 2¼ " (5.7 cm)

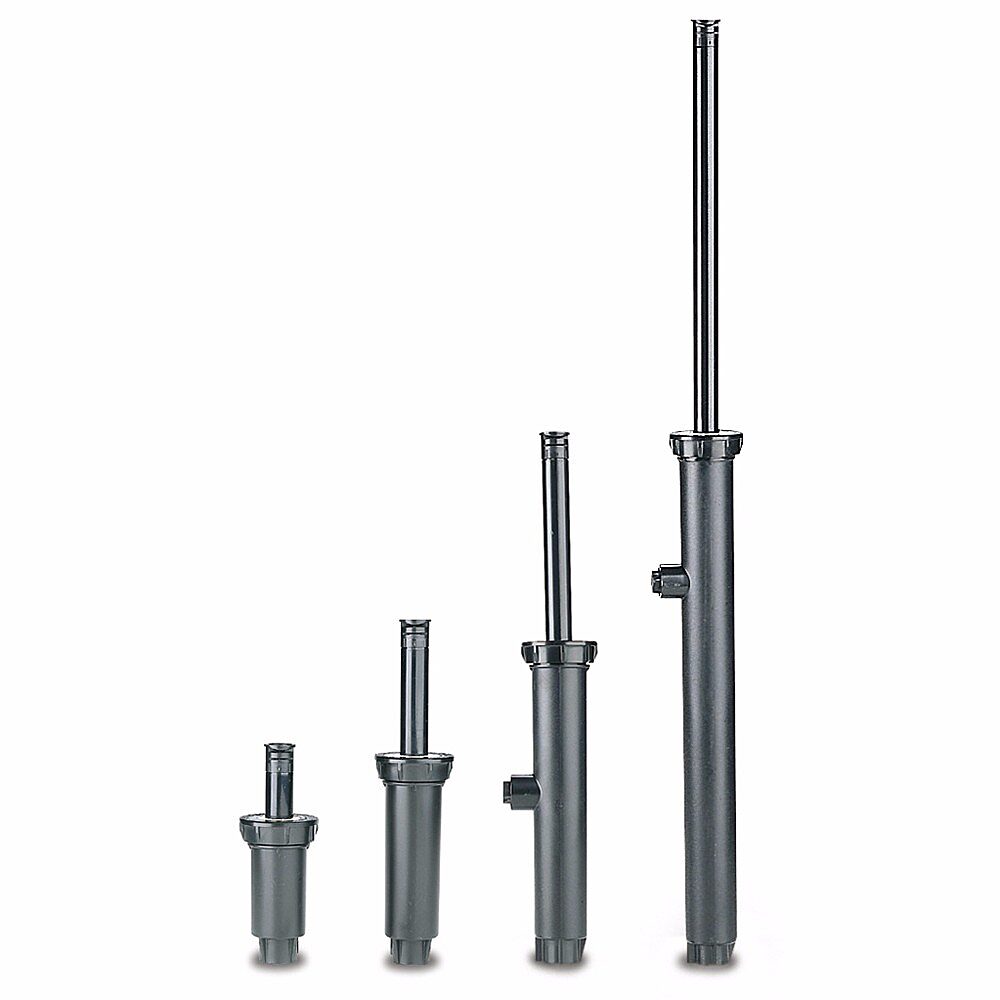

  • 4" spray bodies: 6" (15.2 cm) body height; 4" pop-up height (10.2 cm)
  • 6" spray bodies: 9 3/8" (23.8 cm) body height; 6" pop-up height (15.2 cm)
  • 12" spray bodies: 16" (40.6 cm) body height; 12" pop-up height (30.5 cm)
