Rain Bird 5000 Series Sprinkler
The Rain Bird 5000 Series Sprinkler offers a watering irrigation sprinkler that is in between the large rotors and the smaller landscape sprinklers. It works perfectly on lawns and gardens, where its 7-15 metre throw fits most lawns, while conserving water and providing great uniformity. A number of options are available including plastic or stainless risers, 4″, 6″ or 12″ pop-up heights, check valves and pressure regulation. Coupled with this, the 5000 series can also utilize our 5000 MPR nozzles, which provide “matched precipitation” when using rotors with different arcs.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
The Rain Bird 5000 Series Sprinkler offers a watering irrigation sprinkler that is in between the large rotors and the smaller landscape sprinklers. It works perfectly on lawns and gardens, where its 7-15 metre throw fits most lawns, while conserving water and providing great uniformity. A number of options are available including plastic or stainless risers, 4?, 6? or 12? pop-up heights, check valves and pressure regulation. Coupled with this, the 5000 series can also utilize our 5000 MPR nozzles, which provide “matched precipitation” when using rotors with different arcs.
- Radius 7.6 – 15.2 metres
- Precipitation rate 13-18mm/hour
- Pressure range 1.7 – 4.5 bars
- Flow range 0.17 – 2.09 cubic metres per hour.
- 4?, 6? and 12? pop-up riser heights available
- Choose between plastic and stainless risers.

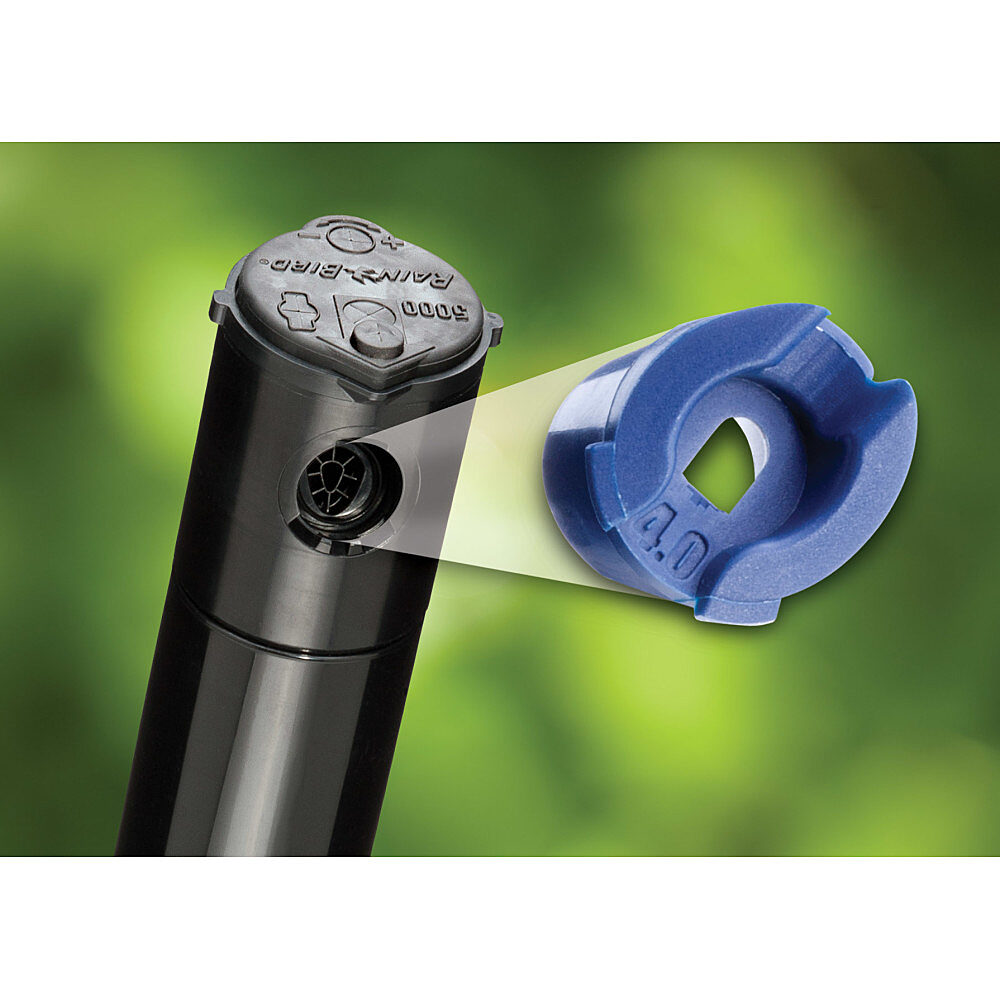

- MPR nozzles available to provide “Matched Precipitation”
- Check valve option to prevent draining.

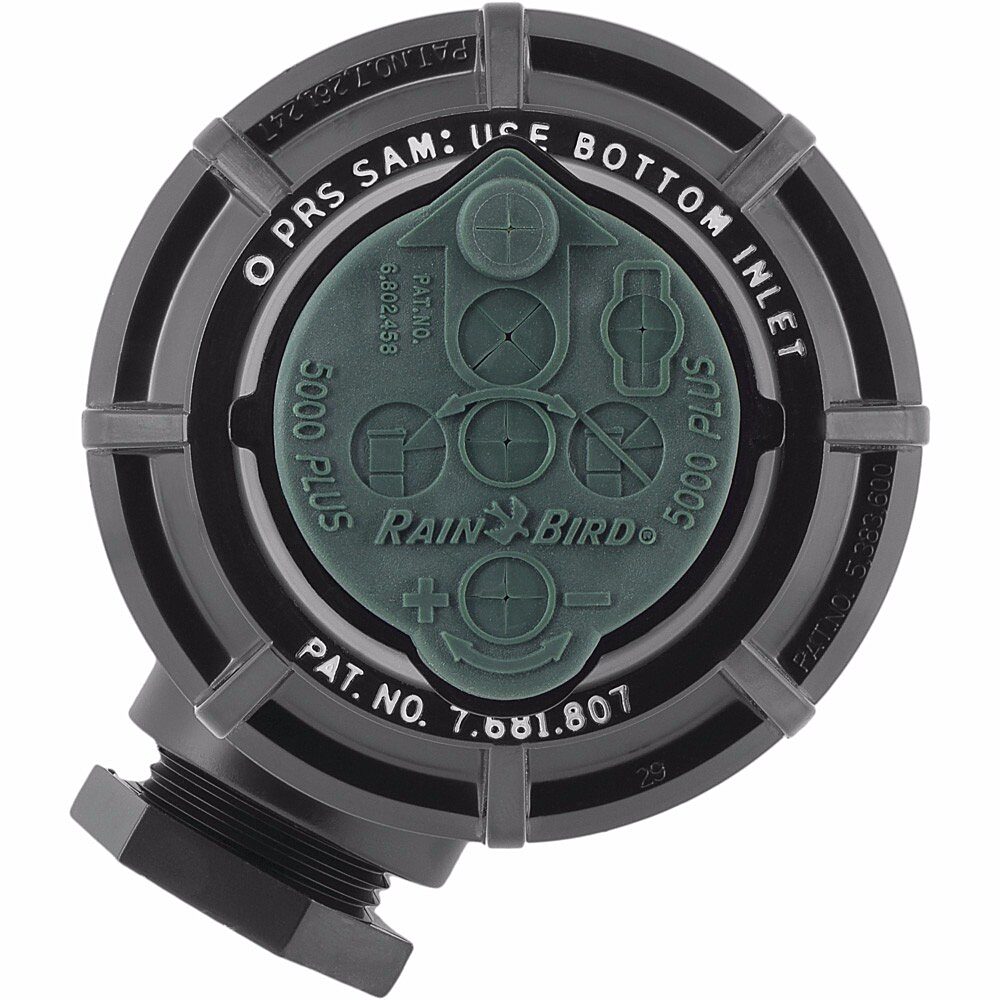

- PRS 3.1 bar pressure regulator option available

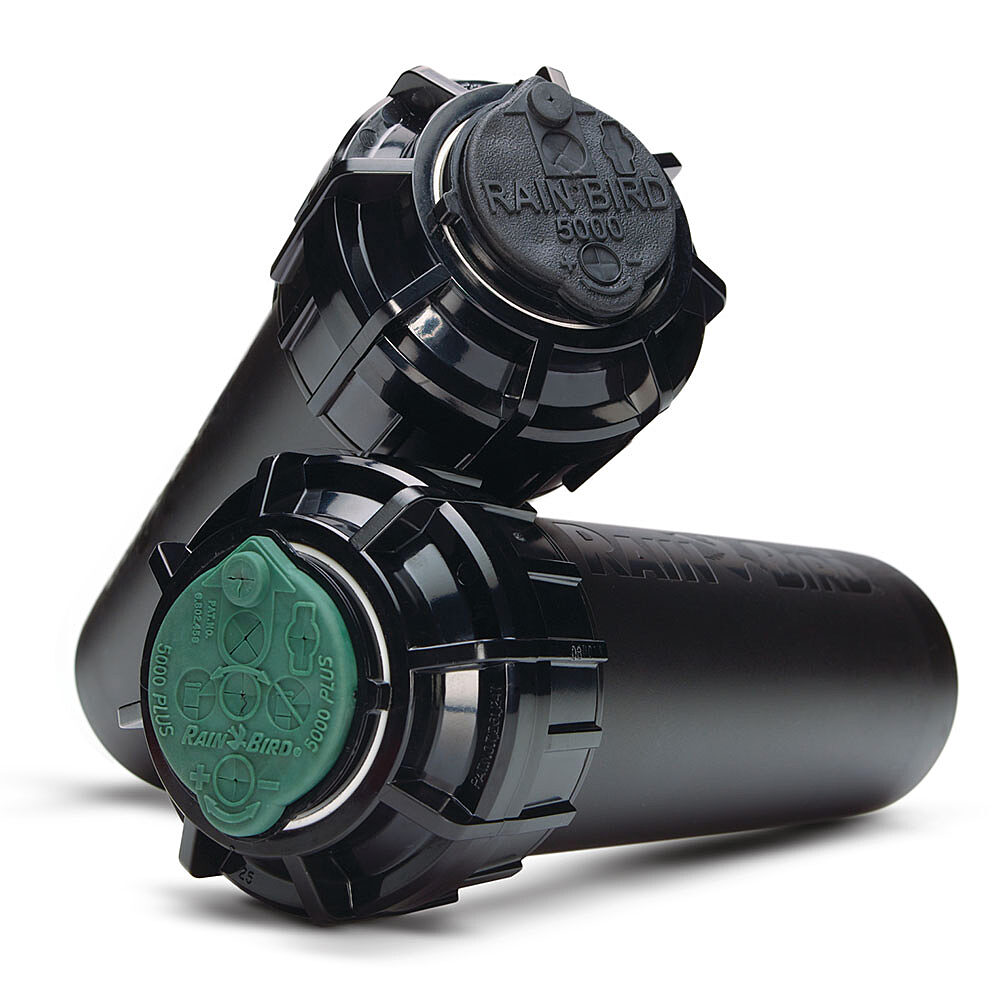

The “+” denotes Flow-Shutoff, meaning that the sprinkler’s flow can be completely shut off while the sprinkler is operating. This is great for adjusting nozzles, or reducing one sprinkler’s operation while other sprinklers on the same station remain operating.
Rain Bird 5000 Series Sprinkler Types

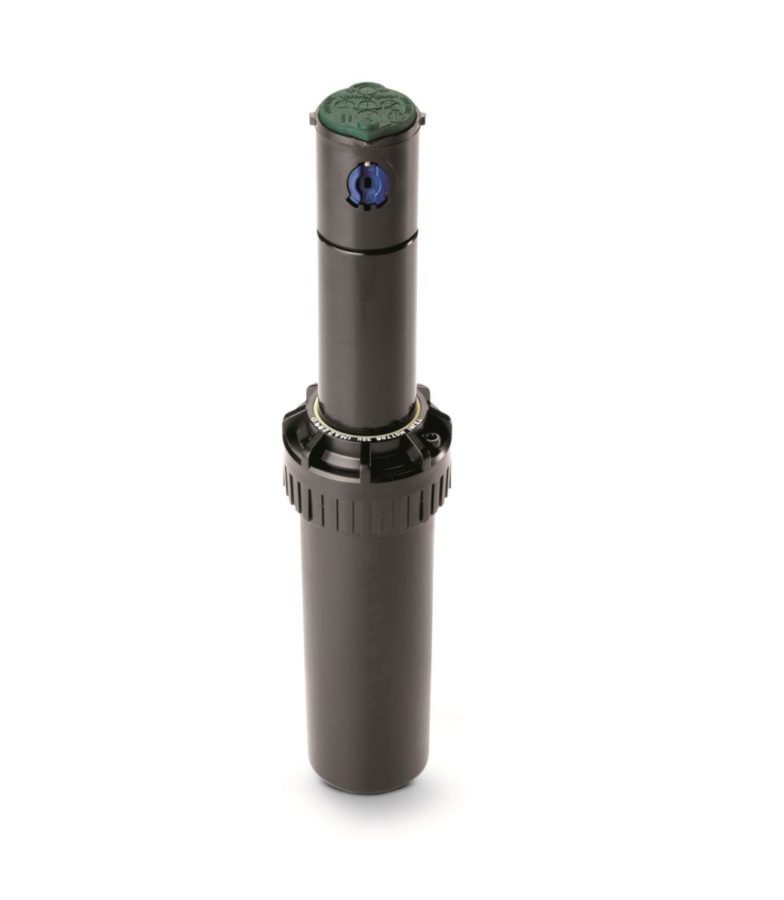

- 4inch riser plastic sheath= 5004PCSAM
- 4inch riser Stainless steel sheath = 5004+PCSAMRSS

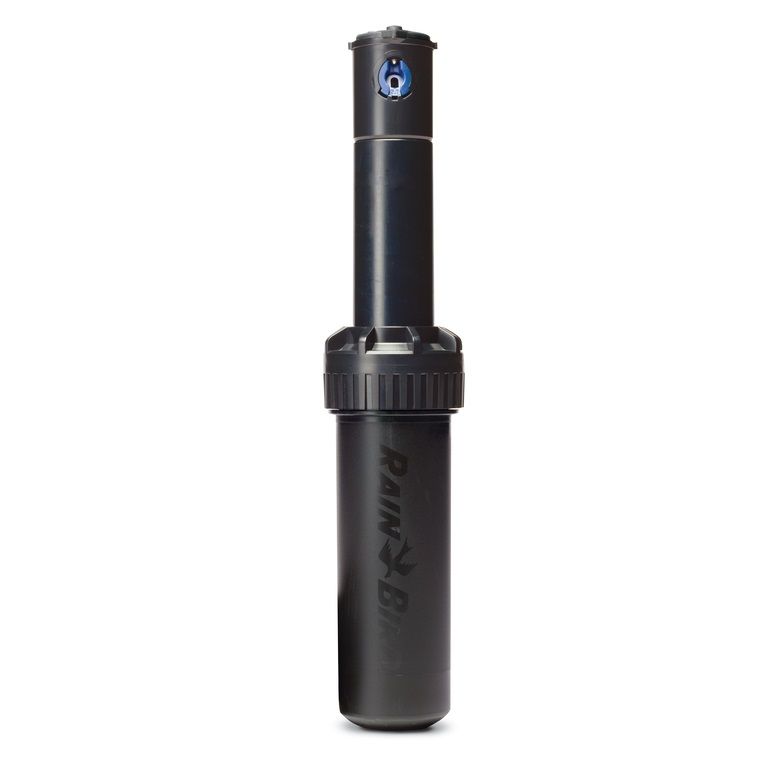

- 6inch riser plastic sheath= 50066+PC

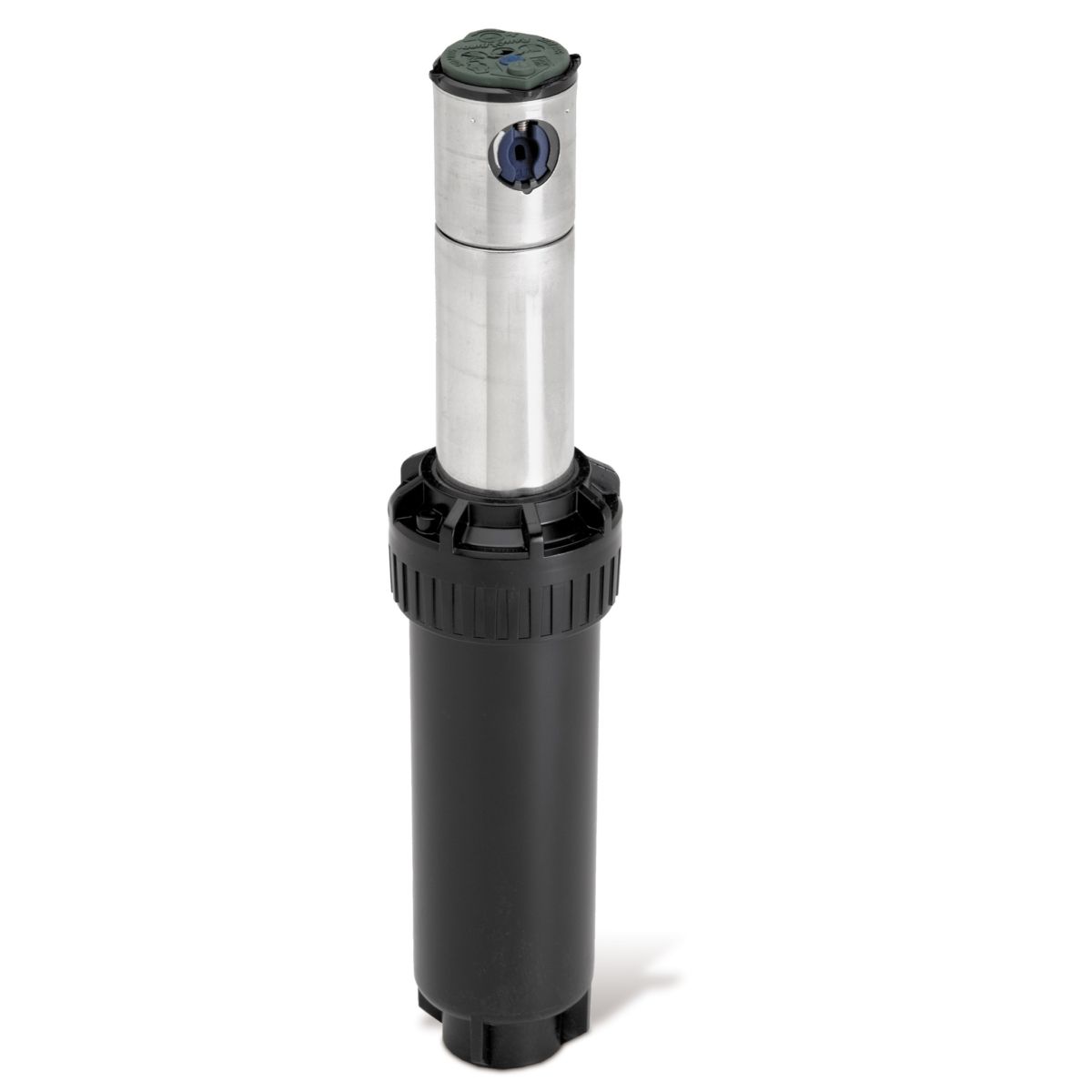

- 6inch riser Stainless steel sheath = 5006+PCSAMRSS
- 12inch riser Stainless plastic sheath = 5002+PCSAMR
Rain Bird 5000 Series Sprinkler Features
- Oversized wiper seal prevents leaks and protects internals from debris Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
- A history of proven performance and reliability tested in millions of installations
- Self-flushing arc adjustment port that prevents buildup of debris
- 5 year trade warranty
Rain Bird 5000 Series Sprinkler Specification
- Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
- Radius: 25 to 50 feet (7.6 to 15.2 m)
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25 to 65 psi (1.7 to 4.5 bar)
- Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)
- Reversing full- and part-circle adjustment from 40° - 360°
- Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.
