R-Van 1800 Series Spray Nozzle Heads

Product Code: 100IR1247-PRO

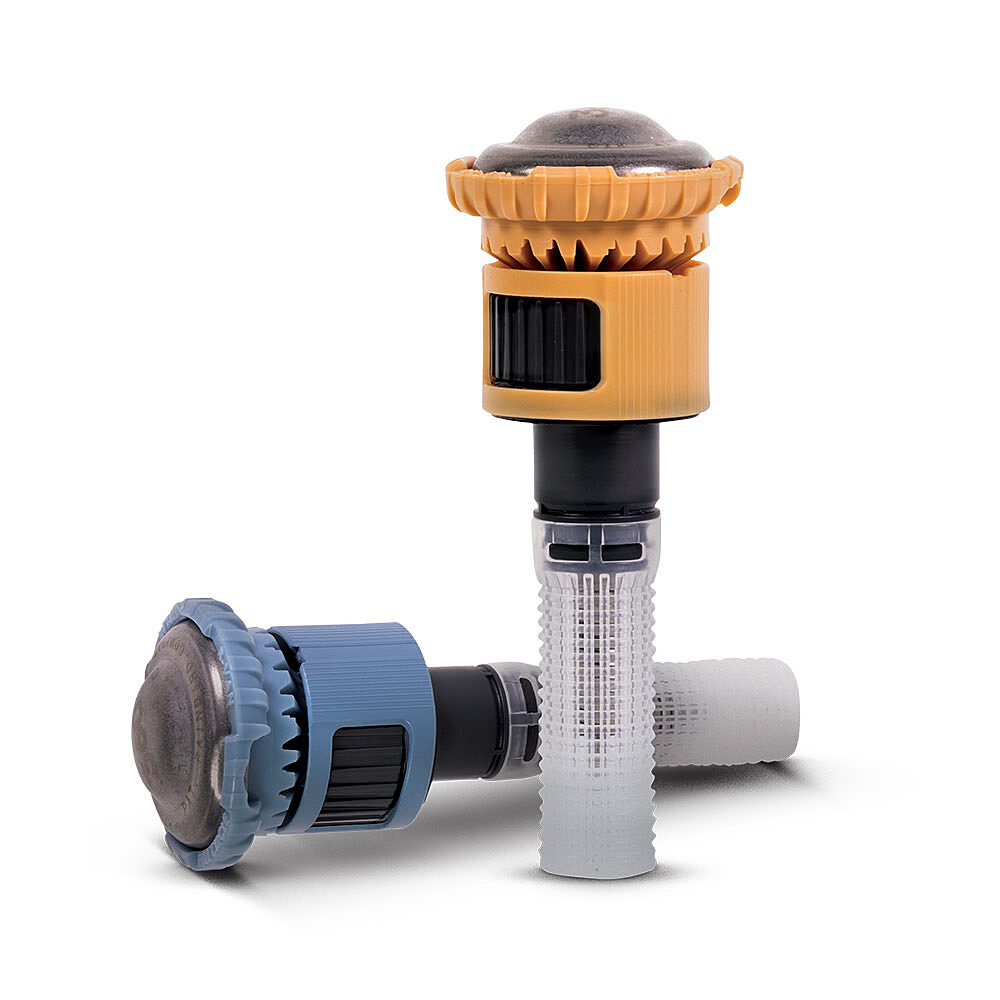

The R-VAN rotary nozzle should become every landscaper's best friend. On lawns and small gardens, once you use the R-Van you’ll wonder how you ever survived without it. This nozzle screws into a Rain Bird 1800 pop-up body (sold separately). The R-Van nozzle uses a very low amount of water to irrigate a large area (4-7 metres radius depending on the model), with excellent uniformity. “Matched Precipitation” means that the nozzles are designed to apply the same amount of precipitation (similar to rain) regardless of whether they are ¼, ½, or full circle nozzles.

Notice

This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.

The R-VAN rotary nozzle should become every landscaper's best friend. On lawns and small gardens, once you use the R-Van you’ll wonder how you ever survived without it. This nozzle screws into a Rain Bird 1800 pop-up body (sold separately). The R-Van nozzle uses a very low amount of water to irrigate a large area (4-7 metres radius depending on the model), with excellent uniformity. “Matched Precipitation” means that the nozzles are designed to apply the same amount of precipitation (similar to rain) regardless of whether they are ¼, ½, or full circle nozzles. This means that when you install them into a lawn or garden, you can be assured that they will be providing a uniform coverage of “rain” across the entire area. Please remember that the R-Van is just a nozzle; it needs to be installed into a body for it to work.

R-Van 1800 Series Spray Nozzle Heads Features

  • Matched precipitation across radius, arcs, and pattern types
  • Low precipitation rate reduces run-off and erosion

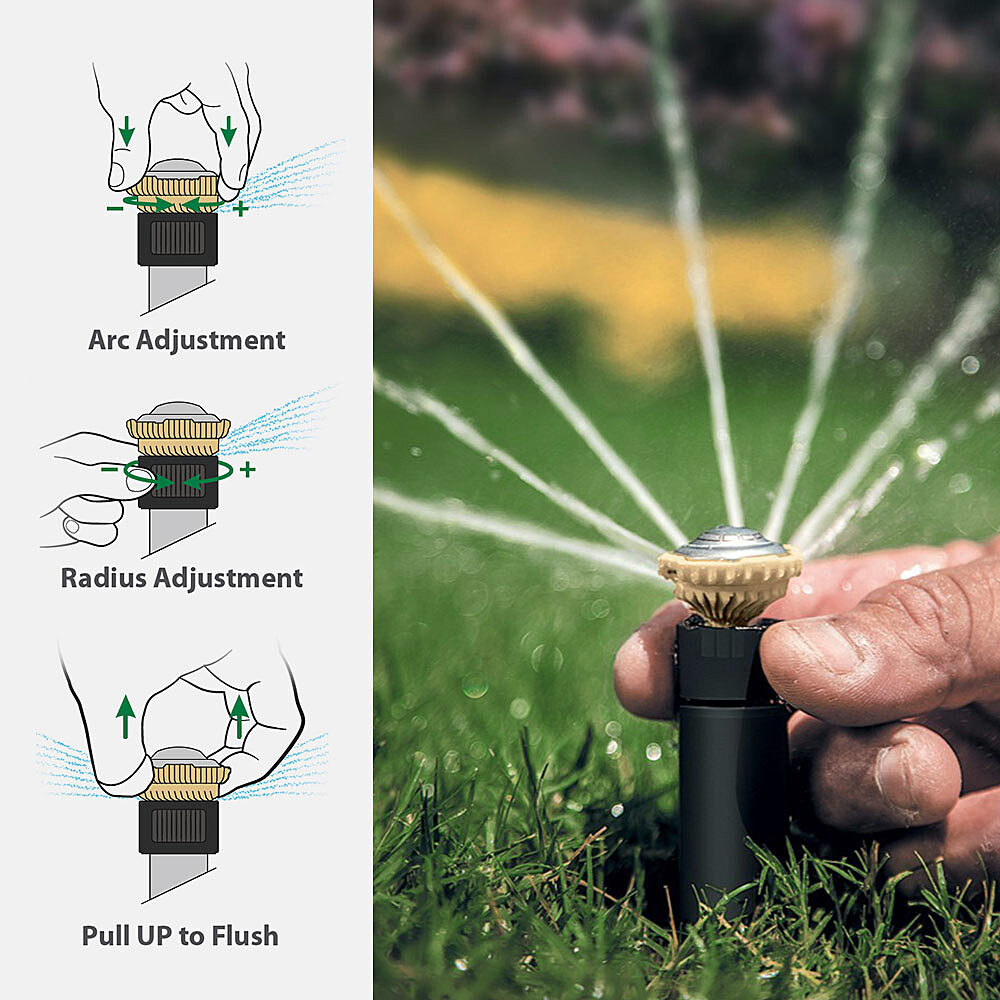

  • Adjust arc and radius without tools
  • A pull-up to flush feature clears the nozzle of dirt and debris
  • Color coded and laser marked for easy identification of R-VAN model
  • Maintains efficient performance at high operating pressures without misting or fogging
  • Compatible with all models of Rain Bird spray bodies, risers and adapters
  • Three year trade warranty

R-Van 1800 Series Spray Nozzle Heads Specifications

  • Pressure Range: 30 to 55 psi (2.1 to 3.8 bar)
  • Recommended Operating Pressure: 45 psi (3.1 bar)
  • Spacing: 8’to 24’ (2.4 to 7.3m)
  • Adjustments: Arc and radius should be adjusted while water is running

R-Van 1800 Series Spray Nozzle Heads Model Comparison

  • 14’ (2.4 to 4.6m)

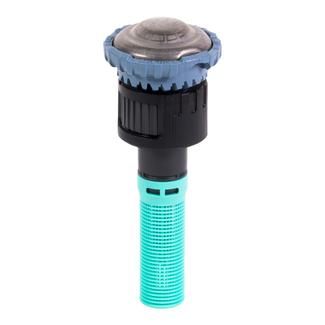

    • R-VAN14: 45° - 270° Adjustable Arc

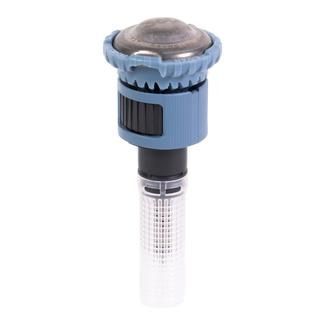

    • R-VAN14-360: 360° Full Circle
  • 18’ (4.0 to 5.5m)

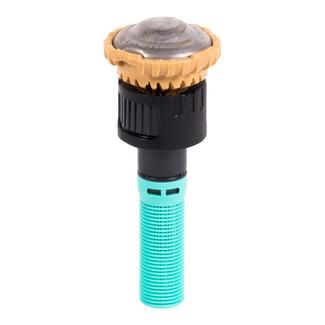

    • R-VAN18: 45° - 270° Adjustable Arc

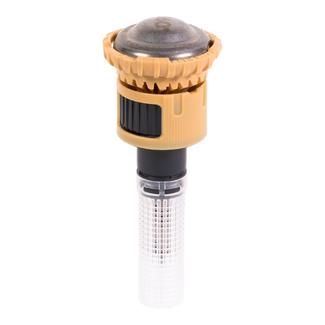

    • R-VAN18-360: 360° Full Circle
  • 24’ (5.2 to 7.3m)

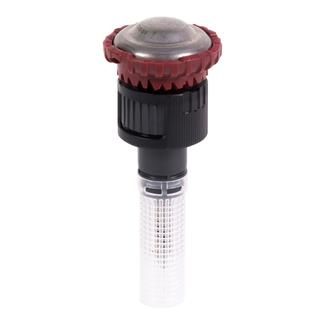

    • R-VAN24: 45° - 270° Adjustable Arc

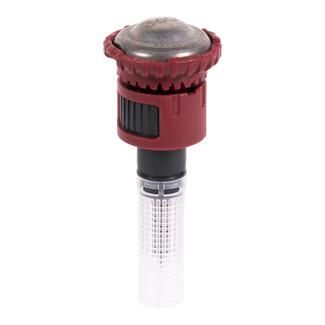

    • R-VAN24-360: 360° Full Circle
  • Strip Nozzles

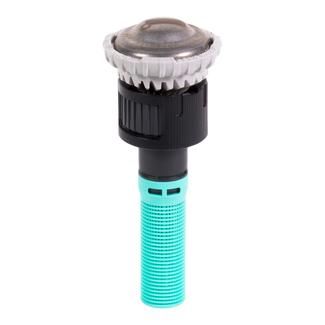

    • R-VAN-LCS: 5’ x 15’ (1.5 x 4.6m) Left Corner Strip

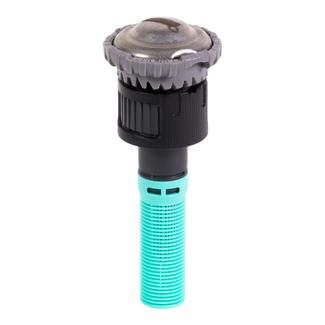

    • R-VAN-RCS: 5’ x 15’ (1.5 x 4.6m) Right Corner Strip

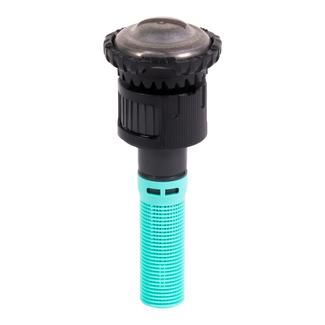

    • R-VAN-SST: 5’ x 30’ (1.5 x 9.1m) Side Strip
