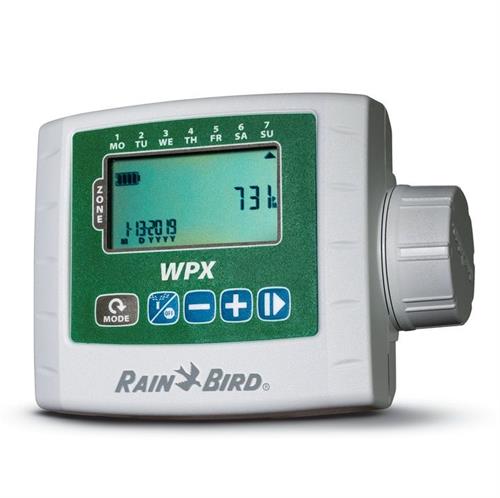

Rain Bird WPX Series Controller

The Rain Bird® WPX Controller has been enhanced with the harshest conditions in mind, so you can install unmatched reliability in some of the most difficult locations. An intuitive user interface simplifies programming and allows contractors, property managers, and homeowners to build programs with ease. A strengthened lens seal shields your controller from all the elements with IP-68-rated water protection. Plus, an industry-leading battery life (2+ years) and a 3-year warranty ensure you’re always covered.

The controller can operate any sized Rain Bird solenoid valve; 1” diameter is standard but there’s nothing stopping you from connecting it to a 1½” or even 2” solenoid valve if you need the extra flow rate. This makes it handy for larger watering systems that don’t have accessible mains power.

Rain Bird WPX Series Controller Features

• Controller Features

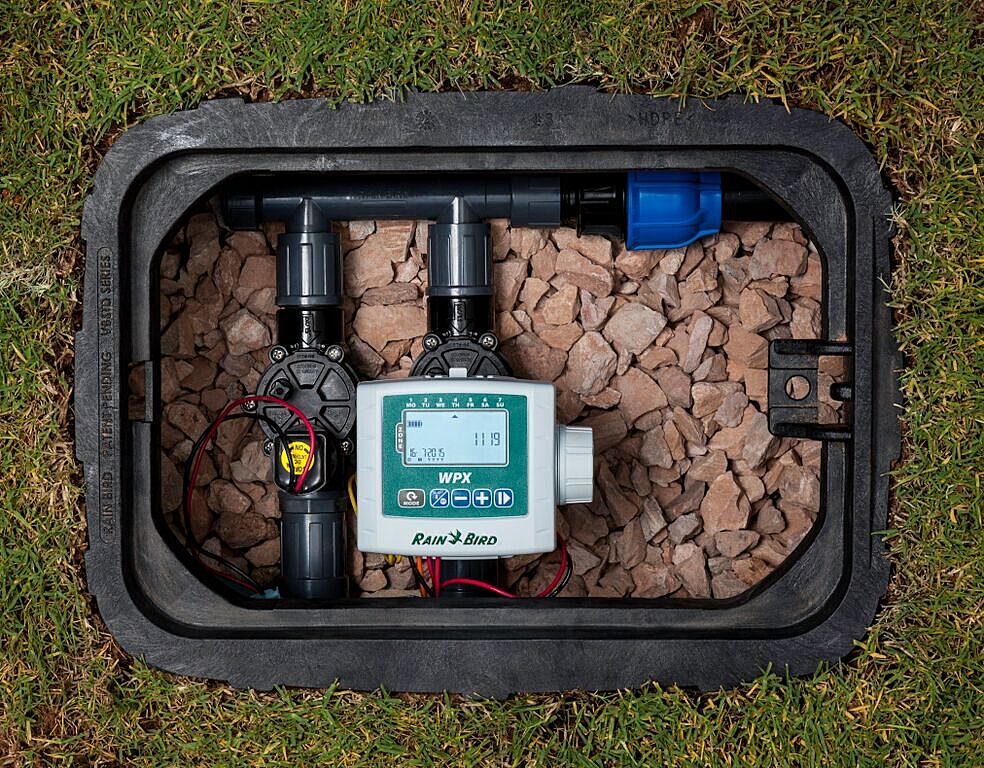

• Waterproof case ensures long life, even when installed in a valve box
• Common programming features are easily accessed on one screen, making programming quick and easy
• Operates for approximately one full year using one 9-volt alkaline battery, or two years with two 9-volt alkaline batteries
• Large LCD display with easy to navigate user interface
• Sensor input with bypass override
• Master valve/pump-start circuit (multi-zone units only)
• Non-volatile (100-year) program memory
• IP68 certified for protection against dust and water intrusion
• Plastic controller case has outstanding resistance to weather, yellowing and aging

Rain Bird WPX Series Controller Scheduling Features

• Dedicated manual watering button for easy operation
• Automatic zone-stacking ensures that only one valve irrigates at the same time. WPX will automatically irrigate the lower number zone first if zones are scheduled to water at the same time
• Contractor Rapid Programming™ automatically copies the start times and watering days from zone 1 to all remaining zones at initial setup
• Run times, start times, and watering days are customizable by zone
• 6 start times per zone
• 4 watering day options per zone: Custom days of the week, Cyclic, and ODD or EVEN calendar days
• Delay watering (1 to 9 days)

Rain Bird WPX Series Controller Types

• WPX - 1 station model pre-installed with Rain Bird DV solenoid valve & coil
• WPX - 2-station model, excludes valve & coils; Can operate up to 2 solenoid valves
• WPX - 4-station model, excludes valve & coils; can operate up to 4 solenoid valves

• WPX - 6-station model, excludes valves & coils; can operate up to 6 solenoid valves

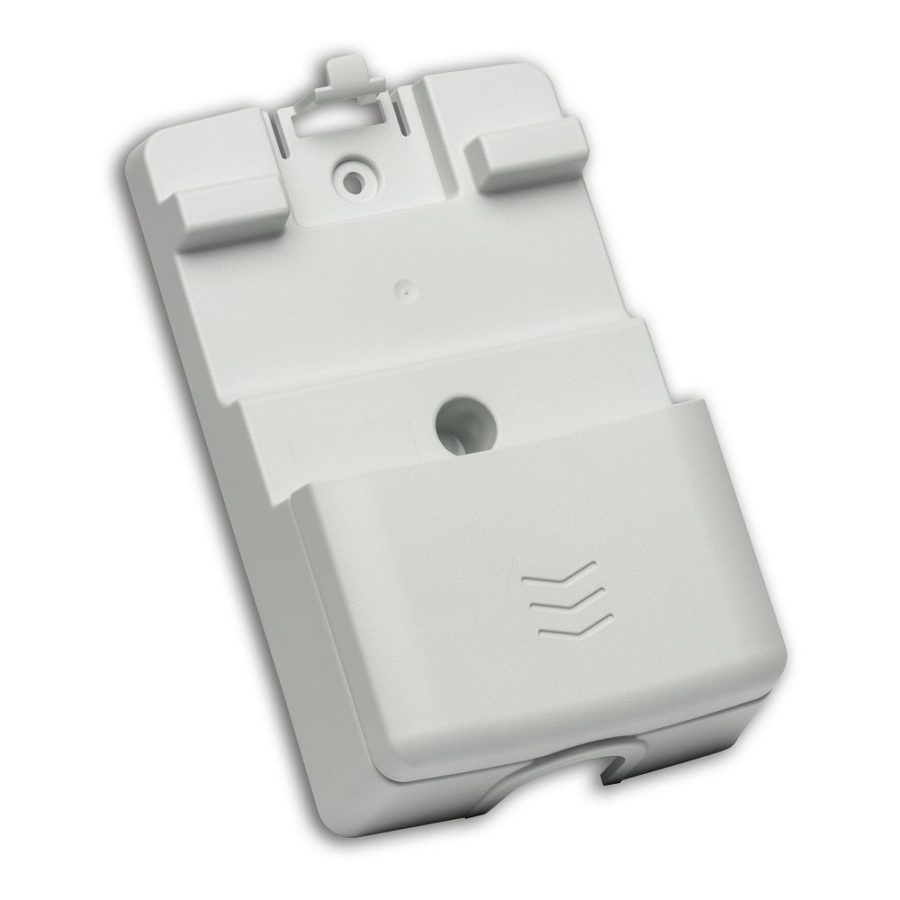

• WPX Wall-mount kit. Use this to safely mount the controller on a wall
