Dripline Irrigation XFD

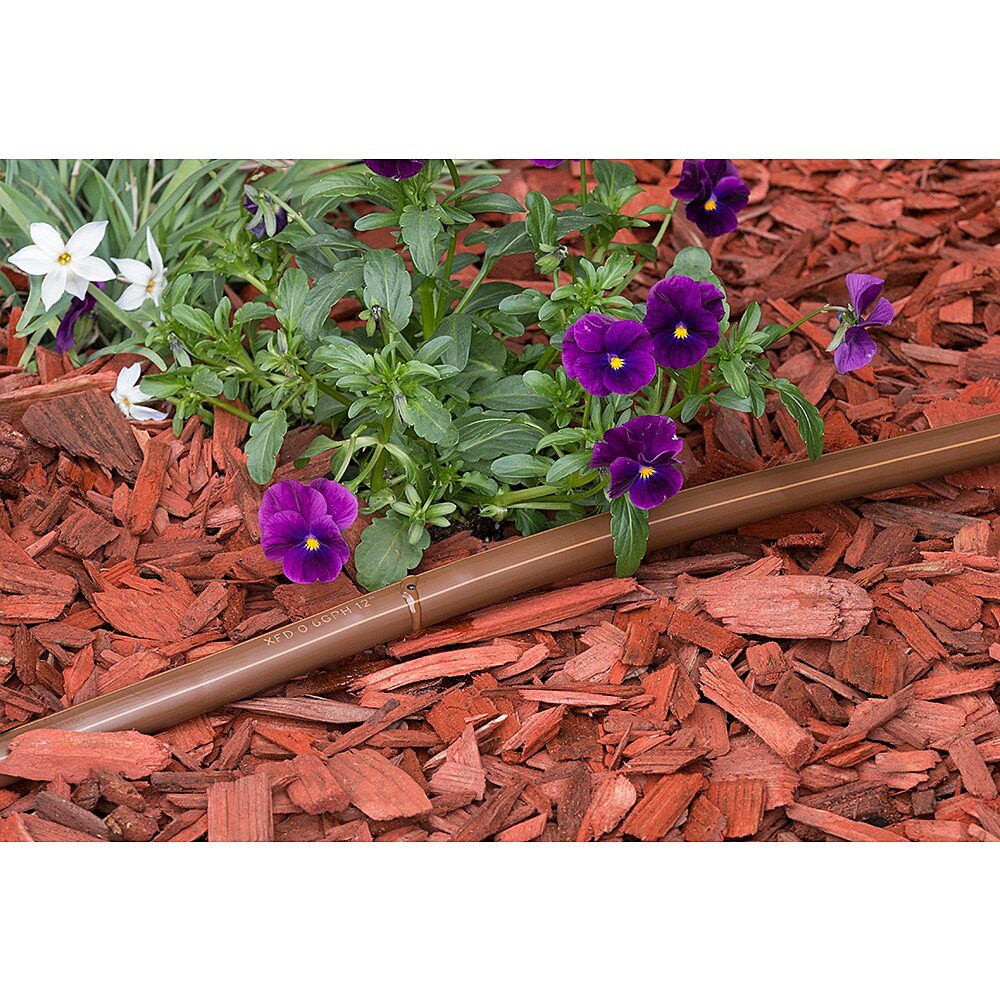

The Dripline Irrigation XFD is the most flexible, pressure-compensating inline emitter tubing available to irrigate ground cover, dense plantings, hedge rows and more. Extra flexible tubing for fast, easy installation. Dual-layered tubing provides unmatched resistance to chemicals, UV damage, and algae growth. Patent-pending emitter design provides for increased reliability. Longer lateral runs than the competition.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
The Dripline Irrigation XFD is the most flexible, pressure-compensating inline emitter tubing available to irrigate ground cover, dense plantings, hedge rows and more. Extra flexible tubing for fast, easy installation. Dual-layered tubing provides unmatched resistance to chemicals, UV damage, and algae growth. Patent-pending emitter design provides for increased reliability. Longer lateral runs than the competition.

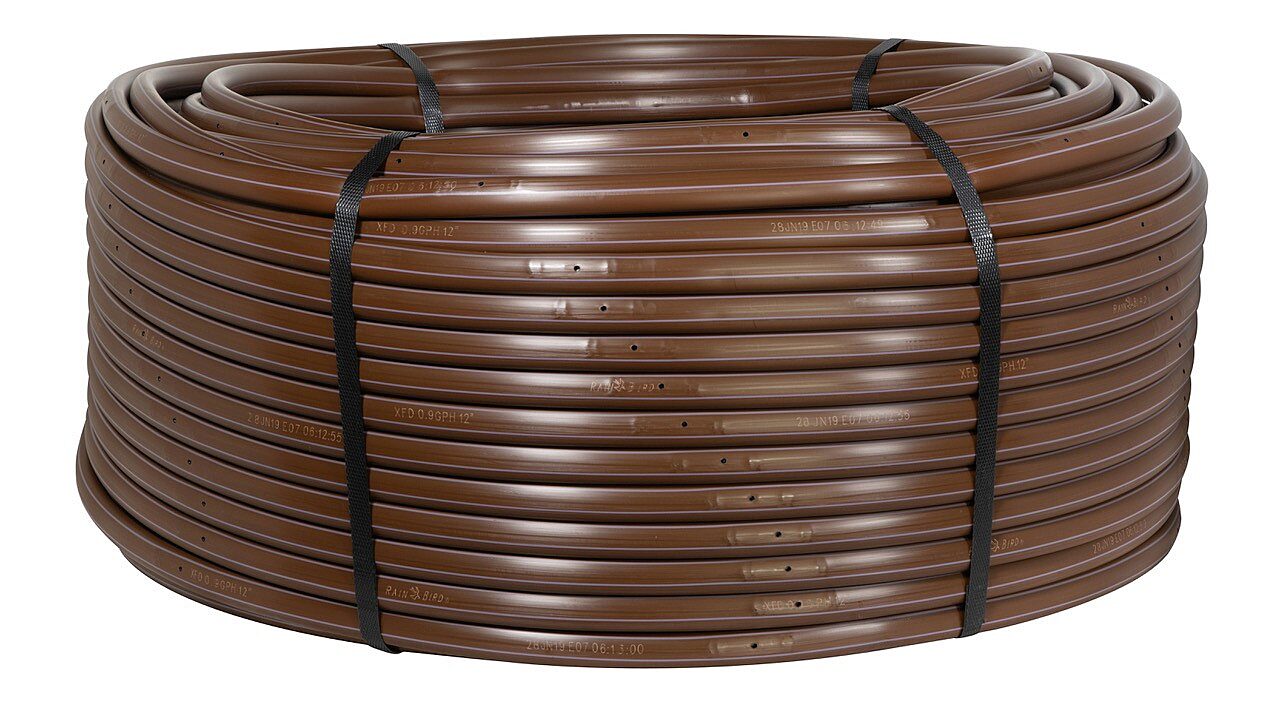

Size Available
- 50m Coil, 33cm emitter spacing, 2.3litres per hour per emitter
- 100m Coil, 33cm emitter spacing, 2.3litres per hour per emitter
Features
- Extra flexible tubing for fast, easy installation
- Dual-layered tubing provides unmatched resistance to chemicals, UV damage and algae growth
- Patent pending emitter design provides for increased reliability
- Longer lateral runs than competition

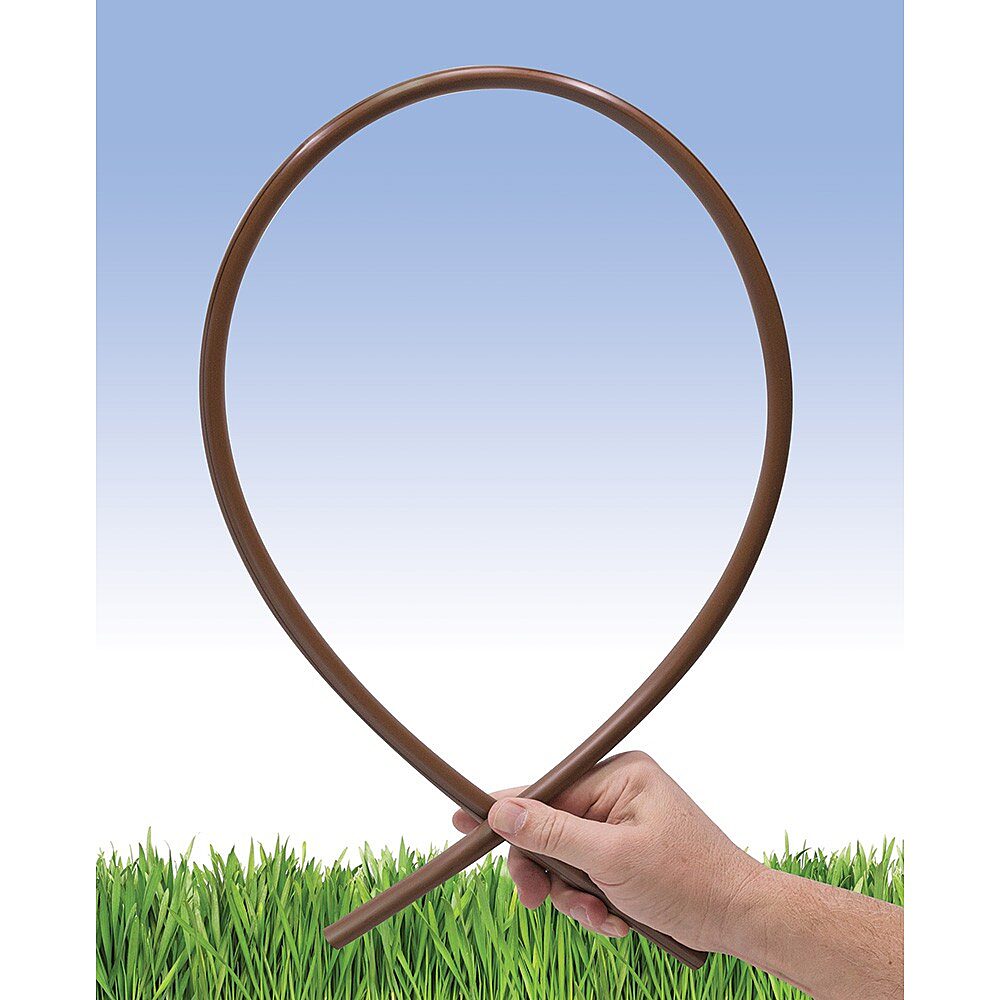

- Unique material offers significantly greater flexibility, allowing tighter turns with fewer elbows for easier installation
Operating Range
- Pressure: 8.5 to 60 psi (0.58 to 4.1 bar)
- Flow rates: 0.6 gph and 0.9 gph (2.3 l/h and 3.5 l/h)
- Temperature: Water up to 100° F (37.8C); Ambient up to 125° F (51.7C)
- Required filtration: 120 mesh
Specifications
- Outside diameter: 0.634" (16.1 mm)
- Inside diameter: 0.536" (13.6 mm)
- Wall thickness: 0.049" (1.2 mm)
- Spacing: 12" or 18"
- Use with XF Dripline Insert Fittings or Rain Bird Easy Fit Compression Fittings
