Flat Fan Spray Nozzle Pack

Product Code: 900AN2451-pro

Flat fan nozzle creates a fine to medium droplet spectrum and is only suitable for use on booms with a 50cm spacing. Recommended Pressure set at 3 bar. Remove the yellow SMV on series 2000 or turn control valve inside classic to high. Flat fan nozzle are a highly versatile nozzle suitable for the application of fungicides, herbicides, insecticides and growth regulators. Ideally used in multiples of two or more on spray booms, due to their overlapping spray pattern This pack is useable for all Cooper Pegler plastic lances and many other sprayers including Micron KS16, Berthoud and Hardi. The range of nozzles included ensures a wide range of droplet sizes can be achieved ensuring effective coverage can be achieved in all situations. ; Pack contains: ; Four Hypro flat fan nozzles colour-coded by water output (quality ; volume) Retaining cap Top hat mesh filter with rubber seal Lance adaptor Suitable for many sprayers: 110° Nozzles in order of smallest flow rate to largest: 1 x 01-F110 Orange flat fan spray nozzle 1 x 02-F110 Yellow flat fan spray nozzle ; 1 x 03-F110 Blue flat fan spray nozzle 1 x 04-F110 Red flat fan spray nozzle 1 x 05-F110 Brown flat fan spray nozzle 1 x 08-F110 White flat fan spray nozzle 1 x Nozzle Cap 1 x ;Nozzle body 1 x Bowler hat filter 50# Note: Always check the pesticide product label for recommended nozzle or spray ; 'quality'. Please consider using a low volume or low-drift nozzle where appropriate. ;'Fine' spray quality is most at risk of drift. Spray quality and areas of use Medium spray: Grass herbicides Foliar fungicides Most pre ; post emergent pesticides Fine spray quality: Late-applied fungicides Early-applied insecticides

Notice

This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.

Flat fan nozzle creates a fine to medium droplet spectrum and is only suitable for use on booms with a 50cm spacing. Recommended Pressure set at 3 bar. Remove the yellow SMV on series 2000 or turn control valve inside classic to high. Flat fan nozzle are a highly versatile nozzle suitable for the application of fungicides, herbicides, insecticides and growth regulators. Ideally used in multiples of two or more on spray booms, due to their overlapping spray pattern This pack is useable for all Cooper Pegler plastic lances and many other sprayers including Micron KS16, Berthoud and Hardi. The range of nozzles included ensures a wide range of droplet sizes can be achieved ensuring effective coverage can be achieved in all situations. ; Pack contains: ;

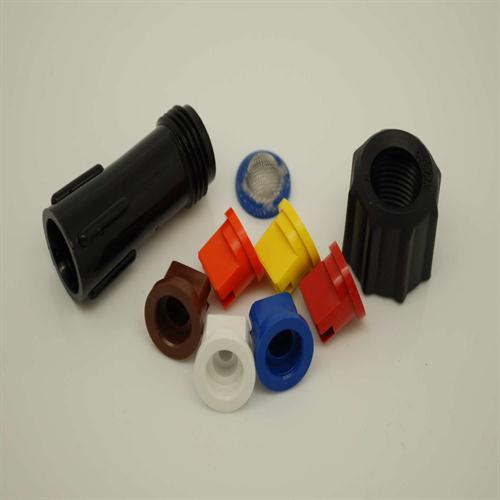

  • Four Hypro flat fan nozzles colour-coded by water output (quality ; volume)
  • Retaining cap
  • Top hat mesh filter with rubber seal
  • Lance adaptor
  • Suitable for many sprayers:
  • 110° Nozzles in order of smallest flow rate to largest: 1 x 01-F110 Orange flat fan spray nozzle 1 x 02-F110 Yellow flat fan spray nozzle ; 1 x 03-F110 Blue flat fan spray nozzle 1 x 04-F110 Red flat fan spray nozzle 1 x 05-F110 Brown flat fan spray nozzle 1 x 08-F110 White flat fan spray nozzle 1 x Nozzle Cap 1 x ;Nozzle body 1 x Bowler hat filter 50#
Note: Always check the pesticide product label for recommended nozzle or spray ; 'quality'. Please consider using a low volume or low-drift nozzle where appropriate. ;'Fine' spray quality is most at risk of drift. Spray quality and areas of use Medium spray:
  • Grass herbicides
  • Foliar fungicides
  • Most pre ; post emergent pesticides
Fine spray quality:
  • Late-applied fungicides
  • Early-applied insecticides
