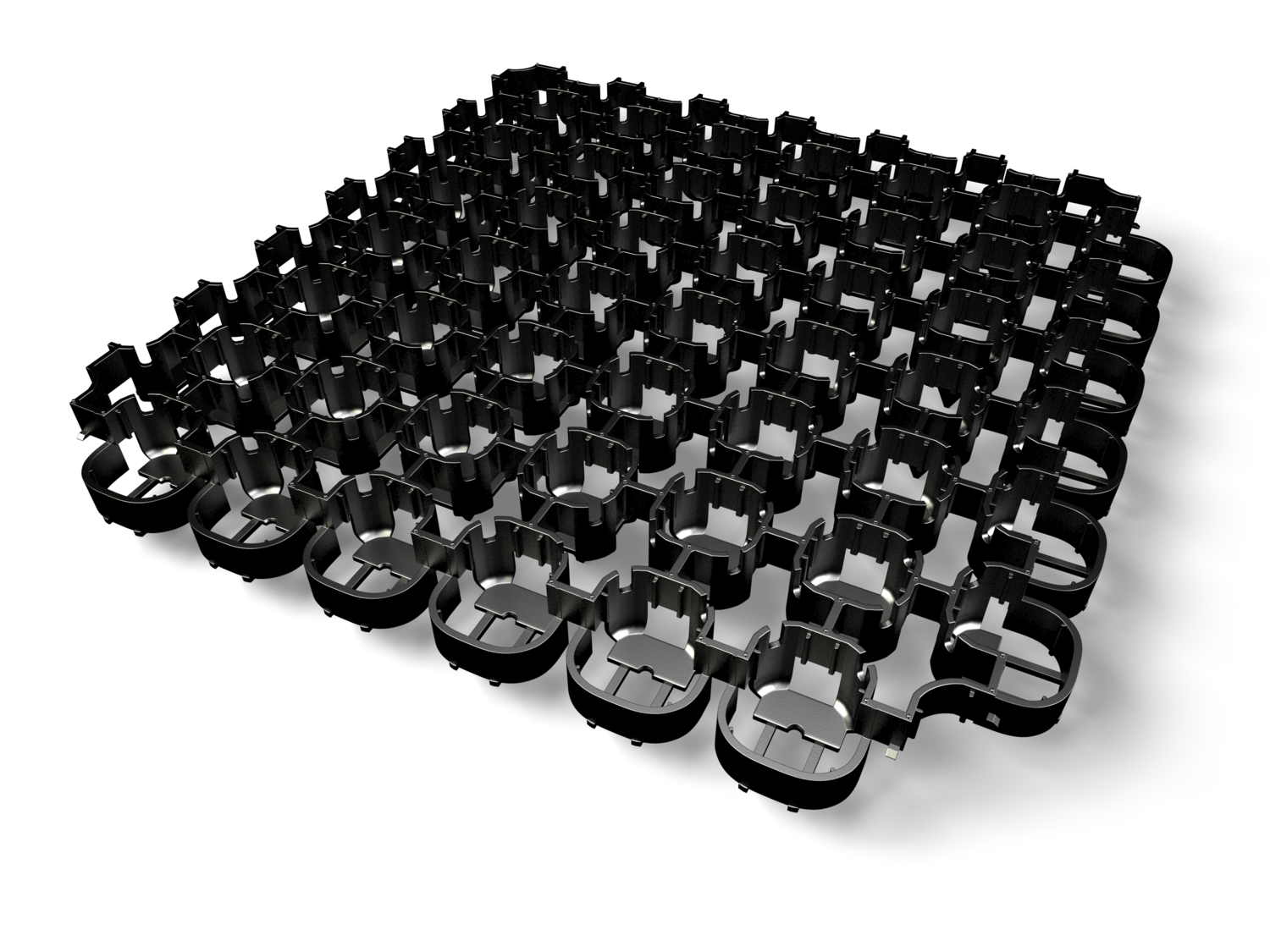

Bodpave 40 Plastic Paver

Product Code: 150WW4092-pro

BodPave® 40 porous pavers are a cost effective ground reinforcement solution for displaced gravel, worn and rutted grass areas for water to run off. Bodpave® 40 plastic paving grids are designed to be installed onto a well prepared, free-draining and relatively even surface. The ground reinforcement paving grids simply connect together and can be filled with either sand, gravel or topsoil and seeded for use as grass pavers which provides a visually pleasant and stable surface structure through which grass can be grown, or filled with an angular gravel for use as a gravel retention reinforcement surface. Bodpave ® 40 offers a load bearing capacity of up to 150t/m2.

From £13.65

BodPave® 40 porous pavers are a cost effective ground reinforcement solution for displaced gravel, worn and rutted grass areas for water to run off. Bodpave® 40 plastic paving grids are designed to be installed onto a well prepared, free-draining and relatively even surface. The ground reinforcement paving grids simply connect together and can be filled with either sand, gravel or topsoil and seeded for use as grass pavers which provides a visually pleasant and stable surface structure through which grass can be grown, or filled with an angular gravel for use as a gravel retention reinforcement surface. Bodpave ® 40 offers a load bearing capacity of up to 150t/m2.

Designed for applications such as:

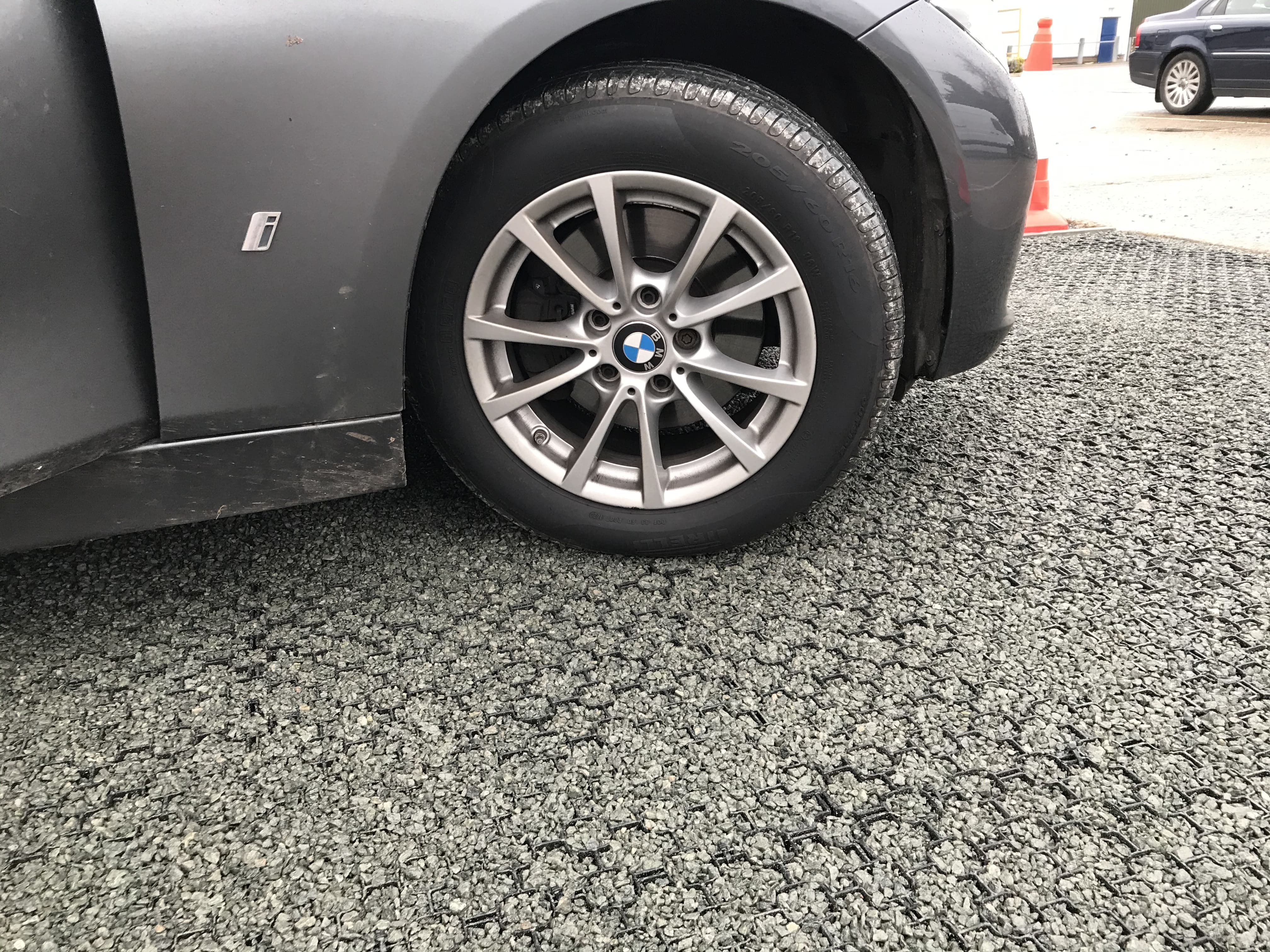

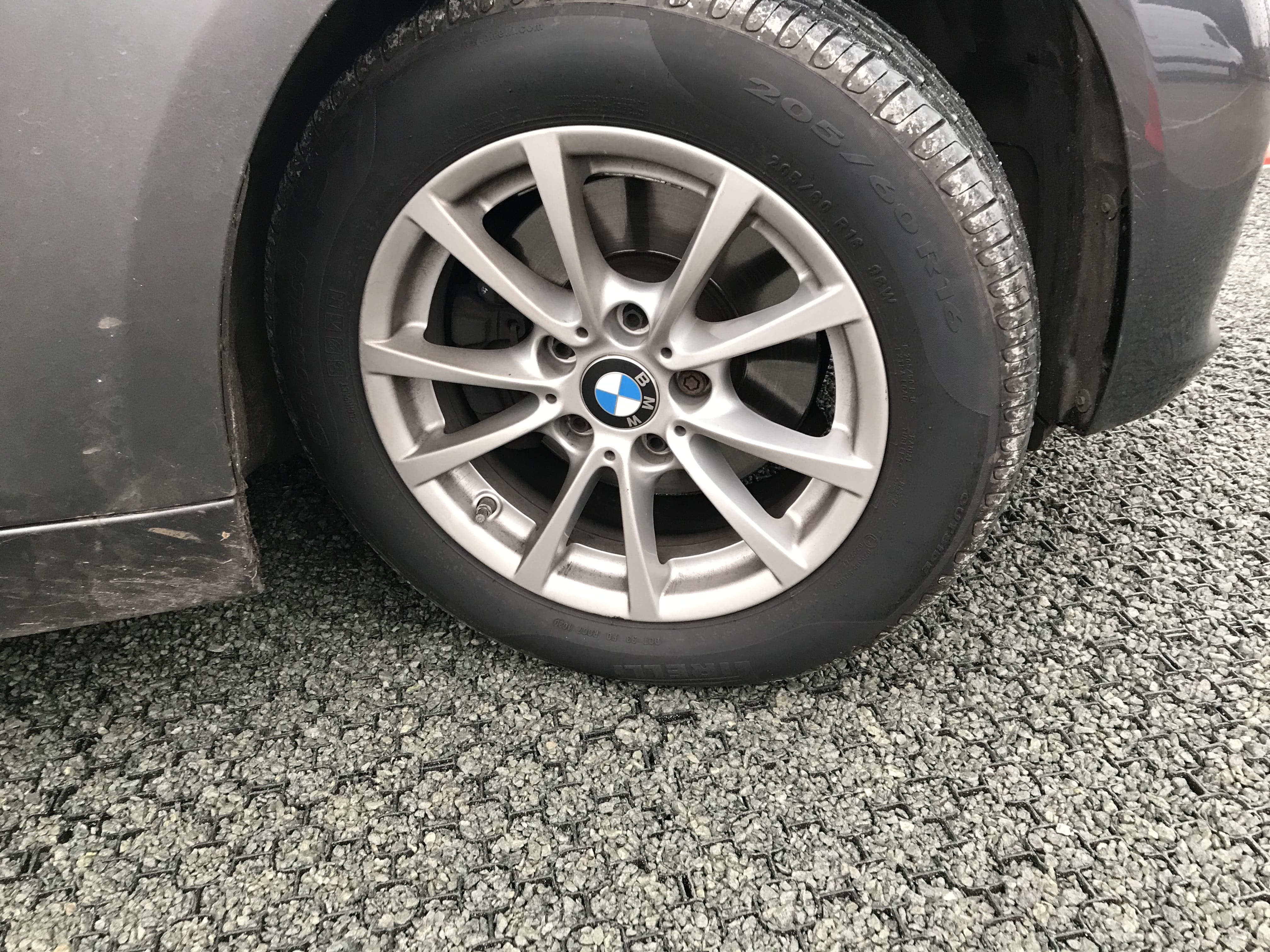

  • Grass & Gravel Car Parks
  • Overflow Car Parks
  • Emergency/HGV Service Access Routes
  • Aircraft Taxiways & Helipads
  • Pedestrian Walkways
  • Wheelchair / Disabled Access Routes
  • Golf Buggy Paths
  • SUDS Source Control

Features & Benefits

  • Load bearing capacity up to 150t/m2 - will cope with static axle roads up to 60kN.
  • Supplied as 4 pre-connected pavers (1m x 1m) - allows rapid installation
  • Interlocking connections per paver- excellent lateral transfer of traffic loads
  • 95% open surface structure- SUDS source control compliant
  • Grass or gravel finish-free draining and naturally pleasing appearance.
  • Reduced-Dig System, reduces installation time and costs, also helps rapid establishment and usage after installation.
  • Easy to install
  • Free-draining and resists lateral movement
  • Supports regular pedestrian and vehicle use

Bodpave 40 Specification

PAVER SIZE (mm)

QUANTITY (per m2

COLOUR

LOAD BEARING CAPACITY

WEIGHT(Nominal)

MATERIAL

500 x 500 x 40 + fixing spike

4 Grids

Black

150tonnes/m2

4.8kg/m2

100% Recycled Polyethylene

500 x 500 x 40 + fixing spike

4 Grids

Green

150tonnes/m2

4.8kg/m2

100% Recycled Polyethylene

Bodpave 40 Black Bodpave ® 40 offers a load bearing capacity of up to 150t/m2. PAVER SIZE (mm) QUANTITY (per m2 COLOUR LOAD BEARING CAPACITY WEIGHT(Nominal) MATERIAL 500 x 500 x 40 4 Grids Black 150tonnes/m2 4.8kg/m2 100% Recycled Polyethylene 500 x 500 x 40 4 Grids Green 150tonnes/m2 ) 4.8kg/m2 100% Recycled Polyethylene
