Rain Bird Landscape Boxes
Rain Bird Landscape Valve boxes are used to hide your solenoid valves and taps under the ground in safety. A well installed valve box will have its surface at ground level. These Rain Bird valve boxes have green lids so you can install one in the lawn and have it reasonably camouflaged, and are constructed of polypropylene. The sides of the valve box are pre-cut for the pipes to enter and exit. There is a built-in hole in the lid so you can lift it off easily.
Notice
This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.
Rain Bird Landscape Valve boxes are used to hide your solenoid valves and taps under the ground in safety. A well installed valve box will have its surface at ground level. These Rain Bird valve boxes have green lids so you can install one in the lawn and have it reasonably camouflaged, and are constructed of polypropylene. The sides of the valve box are pre-cut for the pipes to enter and exit. There is a built-in hole in the lid so you can lift it off easily. These Rain Bird Landscape Valve Boxes are sturdy but are not designed for heavy machinery such as tractors to drive over them. If this is the case, use our Rain Bird heavy duty boxes instead.
Strength and Stability – Multiple sizes and shapes are designed with corrugated sides and wide flange bases for maximum durability, compression strength, and stability

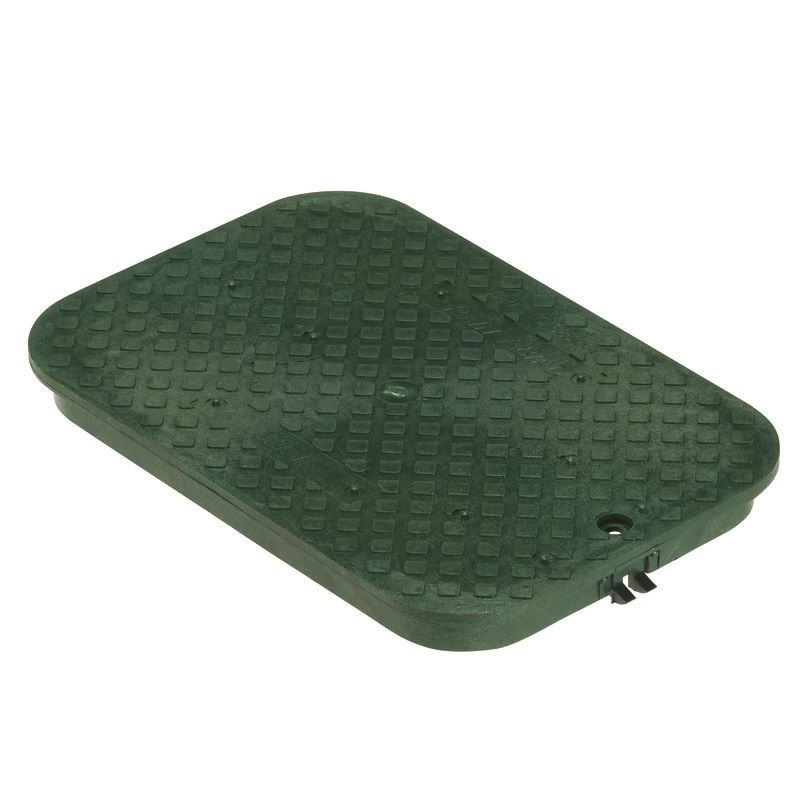

Smart Lid Design – Designed with no holes to keep out pests, beveled edges to minimize damage potential from turf equipment, and for easy hand and shovel access
Flexible Installations – Interlocking stacking capabilities, extension models and pipe hole knockouts support deeper and flexible installations
Environmentally Friendly – Earth-friendly, LEED-compliant material made of 100% recycled materials (black boxes and black lids only)
Rain Bird Landscape Boxes Sizes
- Round irrigation hydrant, 3/4" valve

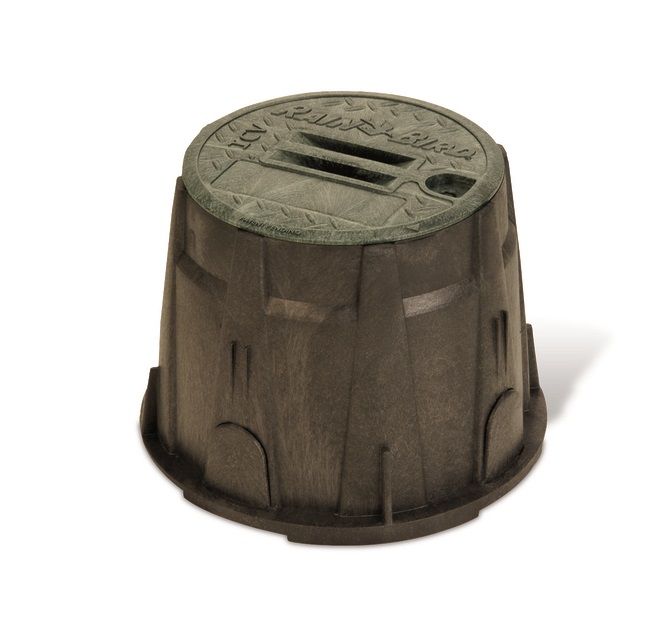

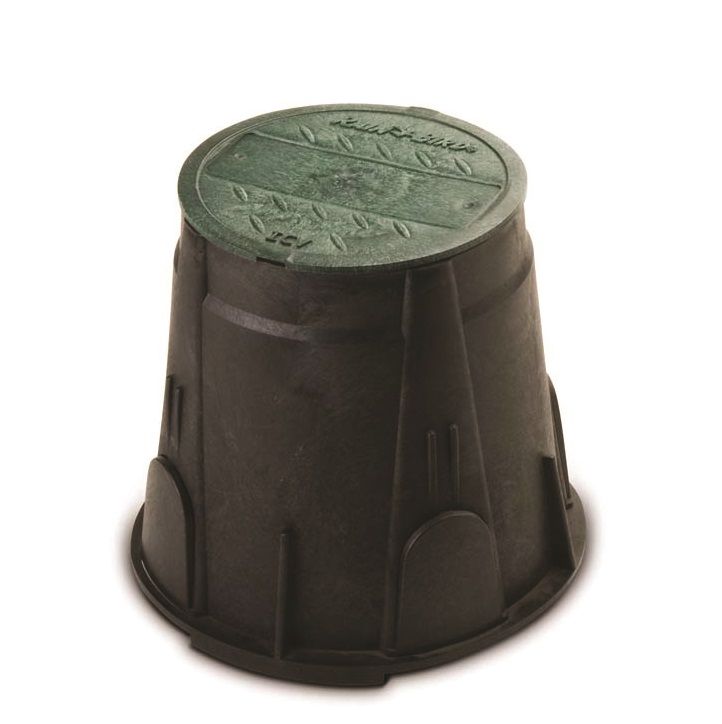

- 7 Inch Round Valve Box- Bottom Diameter: 8.4 inches (21.4 cm) x Height: 9.2 inches (23.4 cm)
- 10 Inch Round Valve Box- Bottom Diameter: 11.8 inches (30,0 cm) x Height: 10.2 inches (26,0 cm)
- Standard Valve Box- Length: 23.2 inches (59.0 cm) x Width: 19.3 inches (49.1cm) x Height: 12.5 inches (31.8 cm)
- Standard Extension - Length: 20.0 inches (50.8 cm) x Width: 14.75 inches (37.5 cm) x Height: 6.75 inches (17.1 cm)
- Jumbo Valve Box - Length: 27.6 inches (70,0 cm) x Width: 21.0 inches (53,2 cm) x Height: 12.5 inches (31.6 cm)

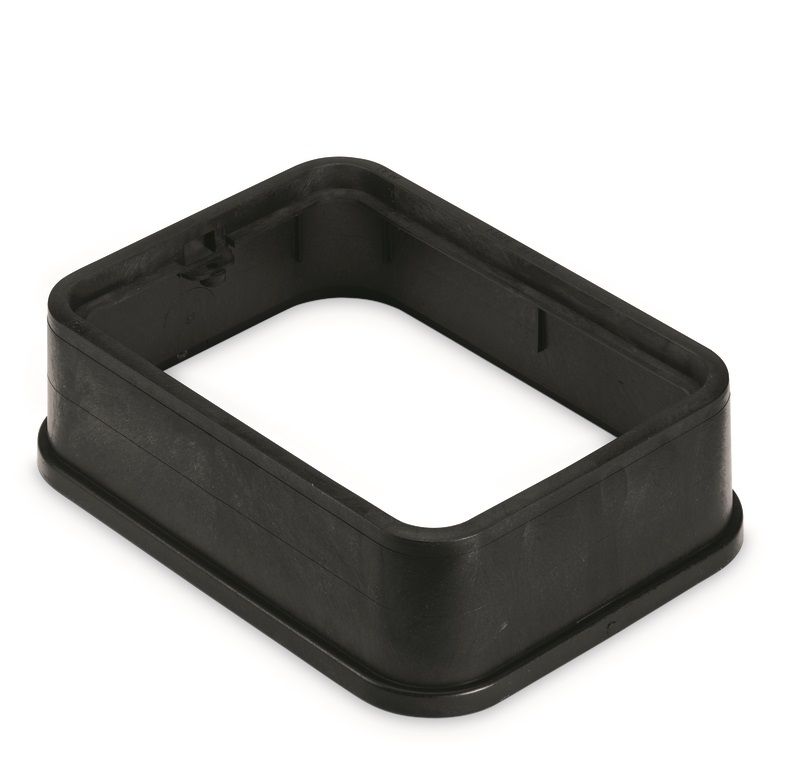

- Jumbo Extension - Length: 24.4 inches (62.0 cm) x Width: 17.9 inches (45.5 cm) x Height: 6.75 inches (17.2 cm)
