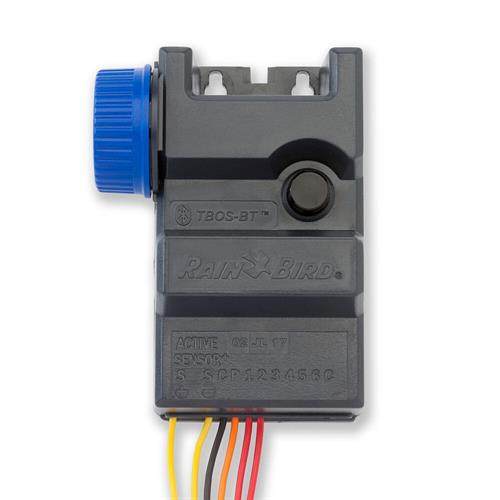

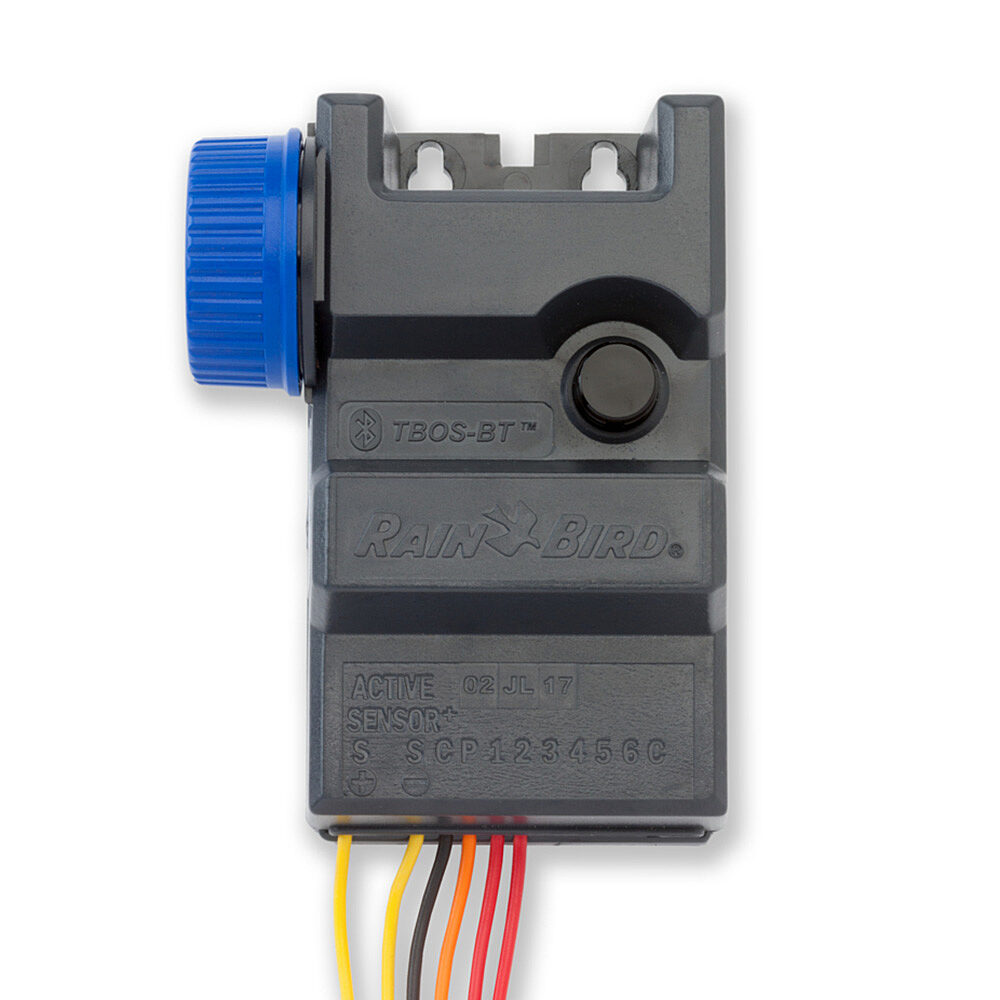

Rain Bird TBOS-BT Battery Controller

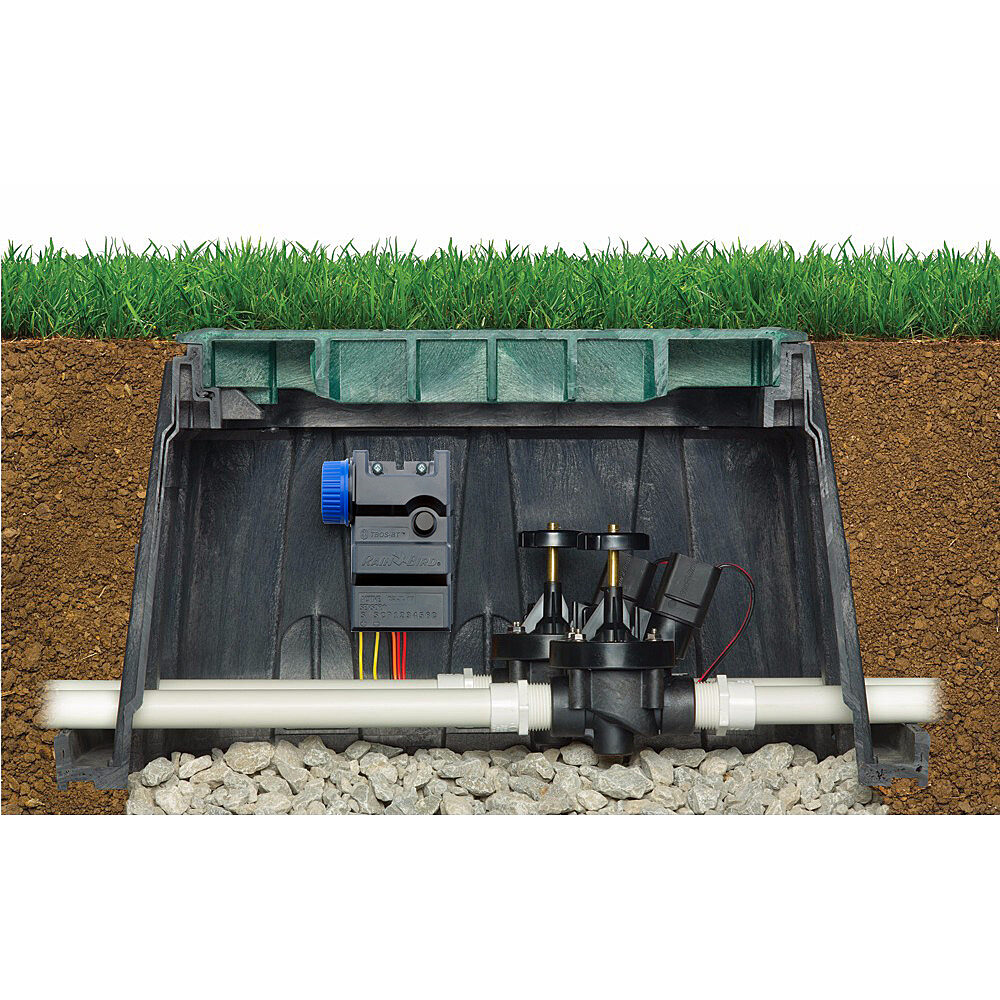

The TBOS-BT 9V Battery Controller provides commercial-level irrigation control that you can program with your smartphone via the free Rain Bird mobile app. Install the controller in street and highway medians, roundabouts, or anywhere you need irrigation control but do not have AC power.

The vandal-proof case makes it ideal for public or high foot traffic areas. With the Rain Bird app you can create flexible schedules that automatically adjust for the season and have multiple programs and start times.

Rain Bird Mobile App Features for TBOS BT

• Create, review and transmit irrigation programs
• Capability to set zones or programs to manually irrigate
• Basic programming includes 3 independent programs A,B and C, each with 8 start times per day
• Stations can be assigned to several programs with different watering run times
• Run time is from 1 minute to 12 hours in 1-minute increments
• Five watering day cycle modes (Custom, even, odd, odd-31, cyclical) selectable by program for maximum flexibility and watering
• Program and global Monthly Seasonal Adjust; 0% to 300% (1% increments)
• Delay watering from 1 to 14 days
• Built-in ID with naming capability. The control module and stations can be individually named
• Optional passcode
• Permanently turn the controller off to prevent irrigation
• Battery indicator reports the status of the control module's battery
• Capability to clear the control module’s irrigation program

Rain Bird TBOS-BT Battery Controller Features

• Operates for approximately one full year using one 9-volt alkaline battery
• Completely potted to obtain IP68 conformity
• Independent station operation allows sequential start times (with stacking in case of overlap) restriction compliance
• Master valve output on TBOS BT1, 2, 4, & 6 Control Modules
• No loss of irrigation program after a battery replacement

Rain Bird TBOS-BT Battery Controller Valve Compatibility

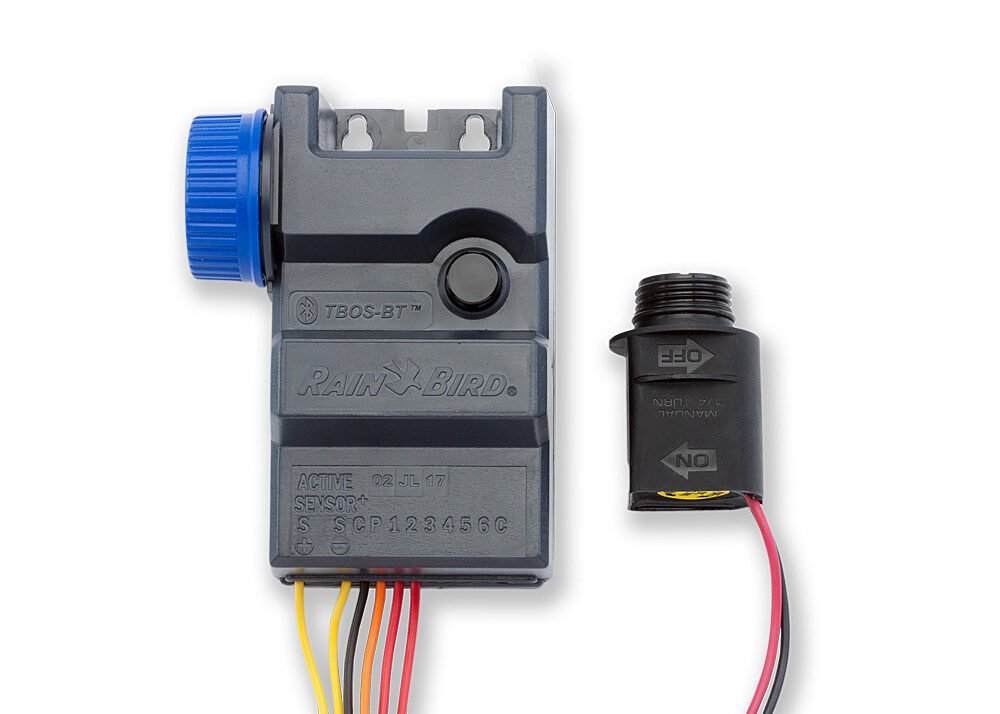

• Rain Bird TBOS Potted Latching Solenoid (K80920) - DV, DVF, ASVF, PGA, PEB, PESB, GB, EFB-CP, BPE and BPES series
• Hunter 458200
• Irritrol DCL
• Toro DCLS-P

Rain Bird TBOS-BT Battery Controller Types

• TBOS-BT Control Module:
  • 1 station, excludes valve & coil.
• TBOS-BT Control Module:
  • 2 stations; can operate up to 2 solenoid valve
• TBOS-BT Control Module:
  • 4 stations; can operate up to 4 solenoid valve
• TBOS-BT Control Module:
  • 6 stations; can operate up to 6 solenoid valves

TBOS-BT Accessories Available

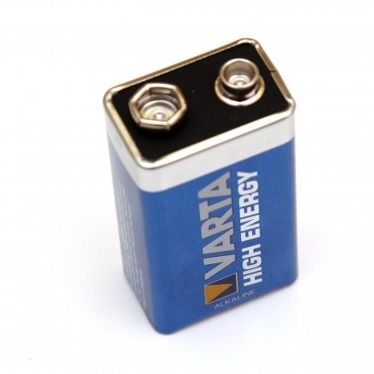

• Replacement 9V Alkaline Battery. Replace the battery every year.

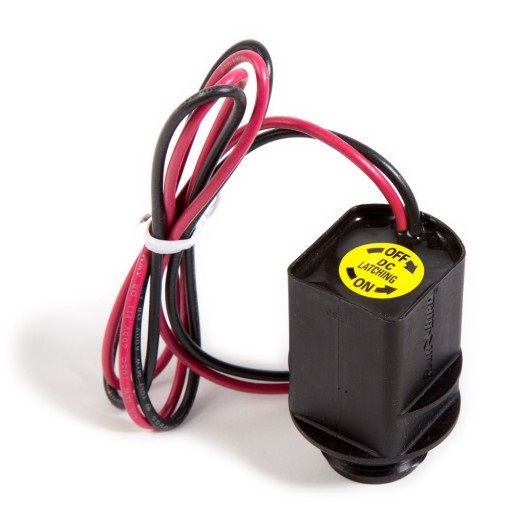

• 9 volt DC latching replacement solenoid coil for Rain Bird valves
