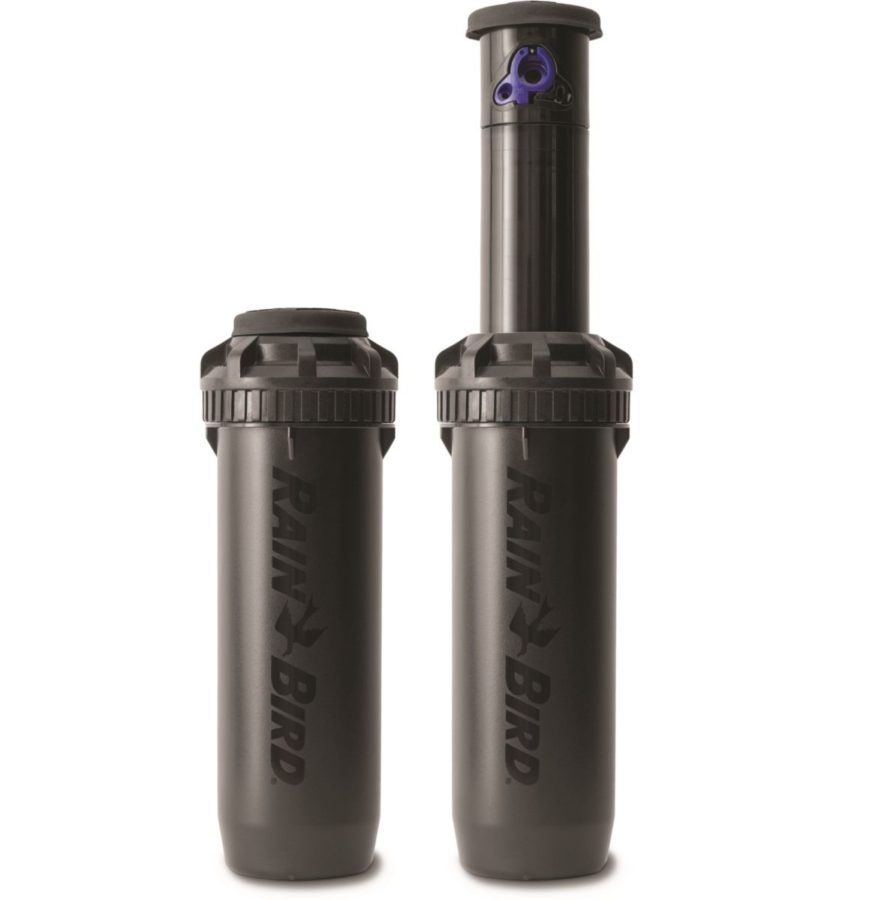

Rain Bird Falcon 6504 Sprinkler Series

Product Code: 100IR1266-PRO

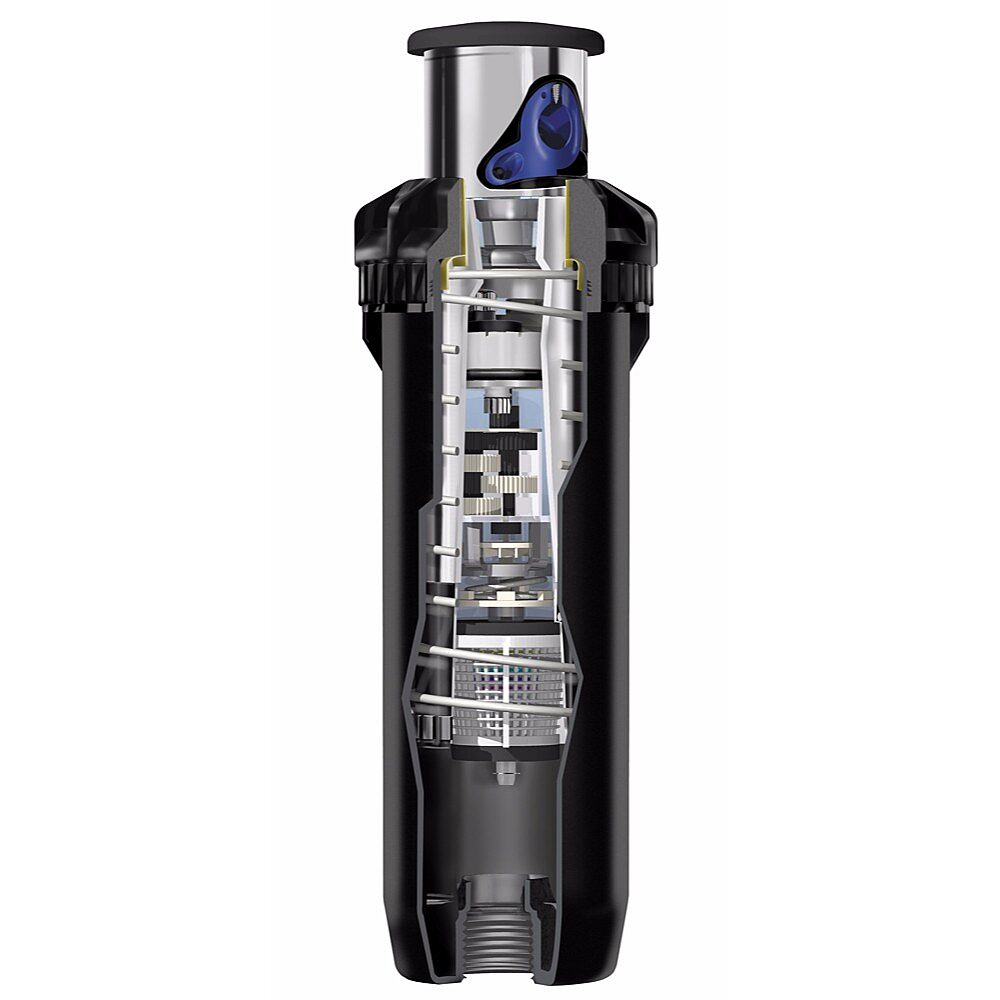

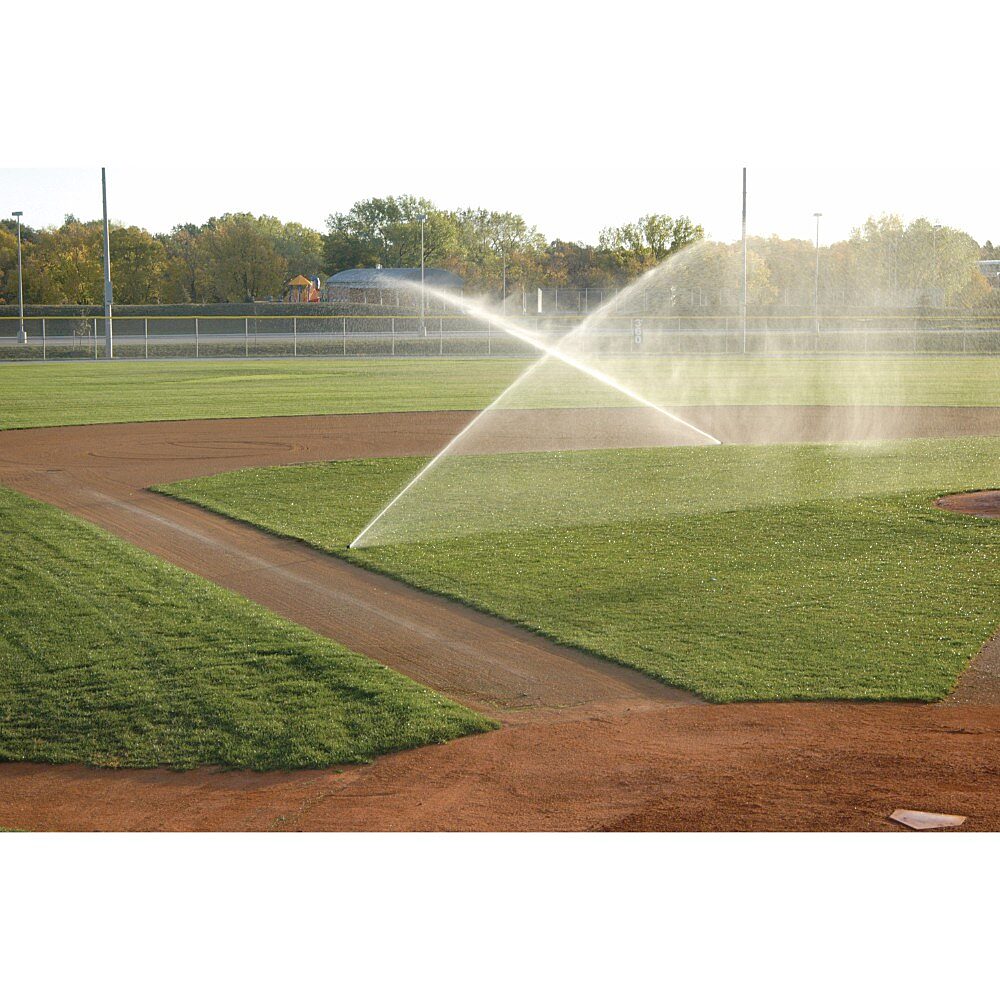

The Falcon 6504 gear-drive rotor is a workhorse when you need a sprinkler that throws up to 19.8 metres radius. Perfect for large landscape projects and an economic solution for large grassed lawned areas plus golf greens irrigation. You can choose from a plastic riser or a stainless riser model.

Notice

This product is available to purchase but requires a conversation with one of our team please fill out the form below and we will be in contact.

The Falcon 6504 gear-drive rotor is a workhorse when you need a sprinkler that throws up to 19.8 metres radius. Perfect for large landscape projects and an economic solution for large grassed lawned areas plus golf greens irrigation. You can choose from a plastic riser or a stainless riser model.

  • Radius 11.9 to 19.8 metres.
  • Precipitation rate 9 – 29 mm/hour.
  • Pressure range 2.1 – 6.2 bars.
  • Flow range 0.66 – 4.93 cubic metres per hour.
  • 4" riser height.
  • Sturdy body construction.
  • Stainless riser option available.

Rain Bird Falcon 6504 Sprinkler Series Options

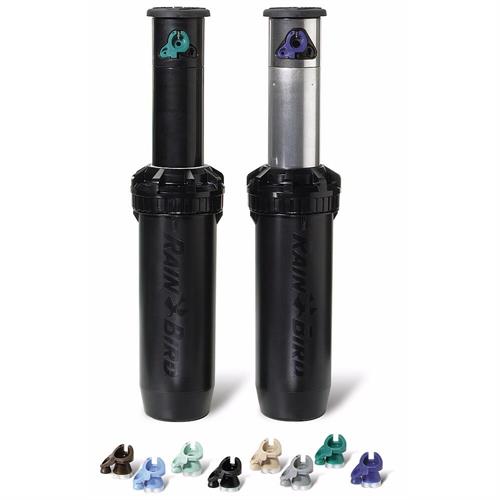

  • 6504 Sprinkler Series Plastic Riser Adjustable Arc

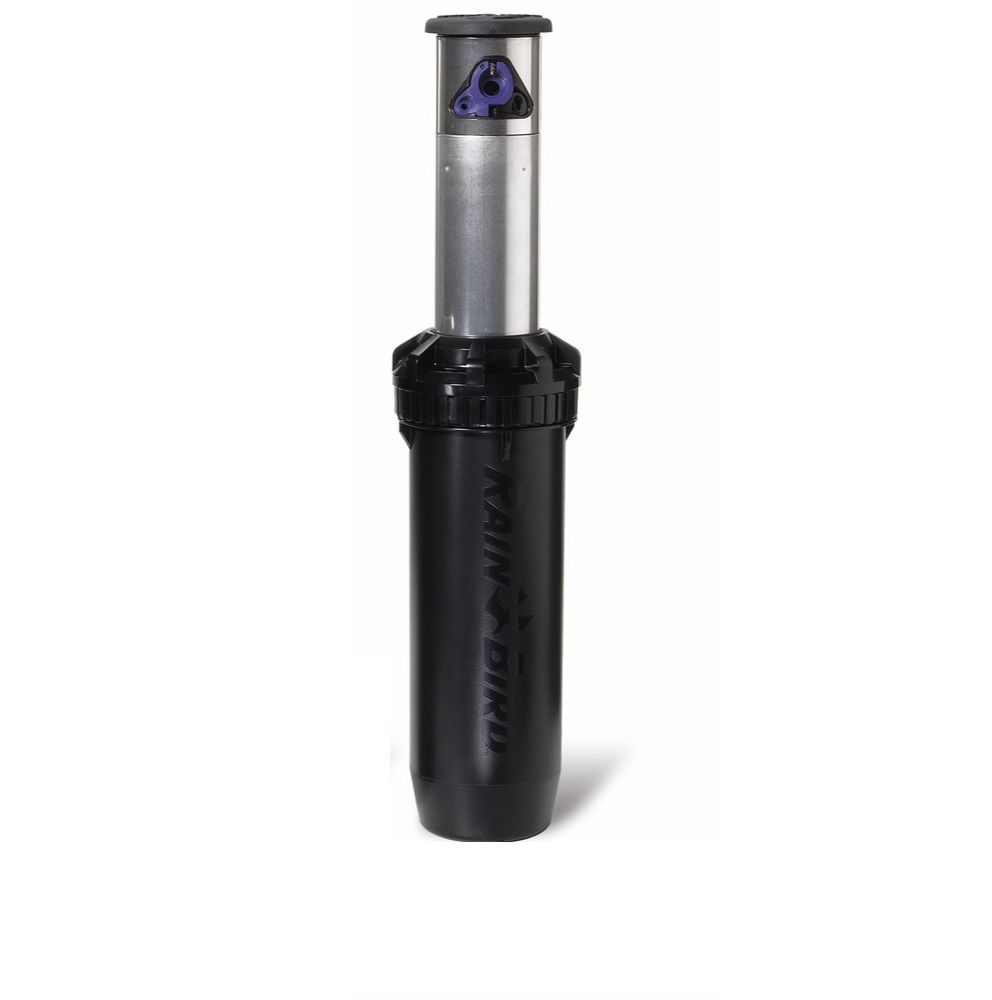

  • 6504 Sprinkler Series Stainless Steel Adjustable Arc

Rain Bird Falcon 6504 Sprinkler Series Features

  • Ratcheting stem just like standard spray bodies
  • 3-port, color-coded Rain Curtain nozzles for optimal long range,midrange, and close-in watering
  • SAM Seal-A-Matic check valve
  • Heavy-duty, stainless steel retract spring ensures positive pop-down
  • 5 year warranty

Rain Bird Falcon 6504 Sprinkler Series Specification

  • Precipitation Rate: 0.37 to 1.31 inches per hour (9 to 33 mm/h)
  • Radius: 39 to 65 feet (11,9 to 19,8 m)
  • Pressure: 30 to 90 psi (2,1 to 6,2 Bars)
  • Flow: 2.9 to 21.7 GPM (0,66 to 4,93 m3/h; 0,18 to 1,37 l/s)

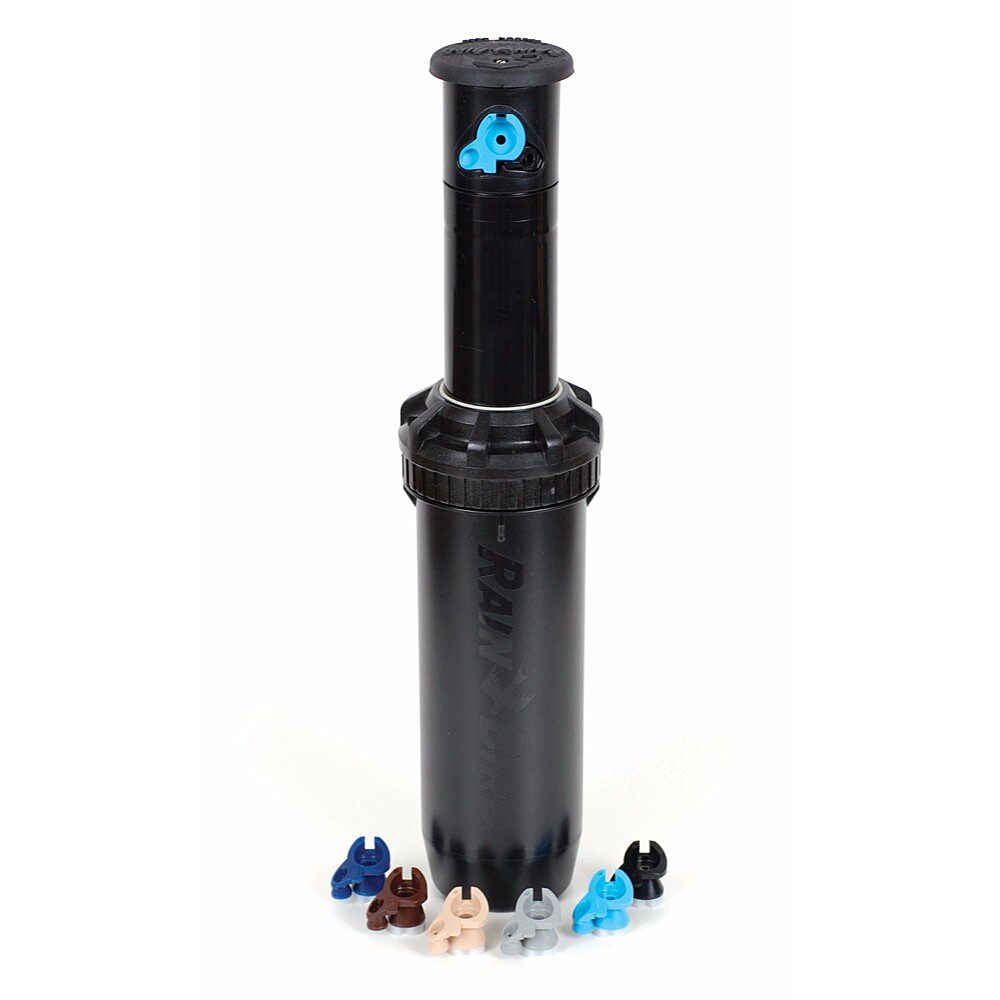

  • Rain Curtain™ Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue
  • 1" (26/34) female NPT or BSP threaded inlet
  • SAM check device holds up to 10 feet (3,1 m) of elevation change
  • Nozzle outlet trajectory is 25°
